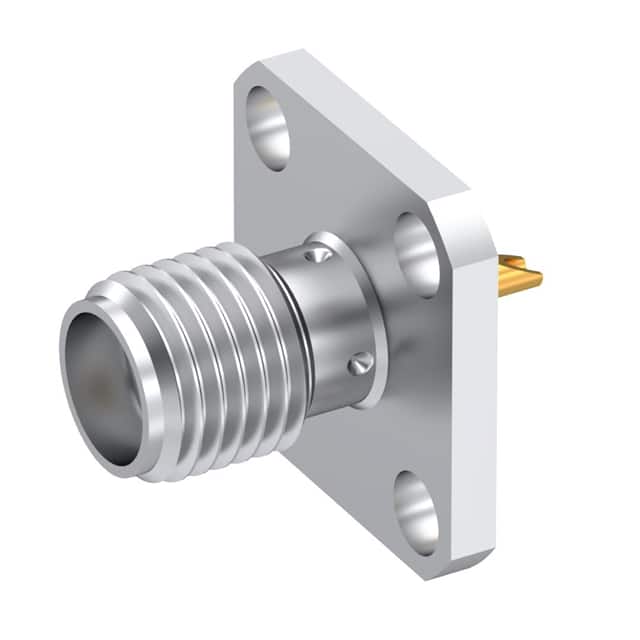

The Radiall R125403001 is an SMA square flange jack receptacle designed for RF applications. It features a 50 Ohm impedance and operates up to 18 GHz. The connector uses a solder cup contact termination and is panel mounted with a flange. The body is made of passivated stainless steel, with a beryllium copper center contact plated with gold over nickel. The insulator is PTFE. Electrical characteristics include a maximum VSWR of 1.04 + 0.004*F(GHz), insertion loss of 0.05*√F(GHz) dB, and RF leakage of -(100 - F(GHz)) dB. It is rated for 500 Vrms maximum voltage and 1000 Vrms dielectric withstanding voltage. The operating temperature range is -65°C to +165°C. Mechanical features include a minimum torque of 2.8 N.cm and a mating life of 500 cycles minimum. The connector weighs 2.551 g and is packaged in standard quantities of 100 pieces.
| Qty | Low | High |
|---|---|---|
| 100+ | $18.13 | $18.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohm.
18 GHz.
500 Vrms maximum.
Panel mount with flange.
-65°C to +165°C.
Solder cup.
100 pieces.
