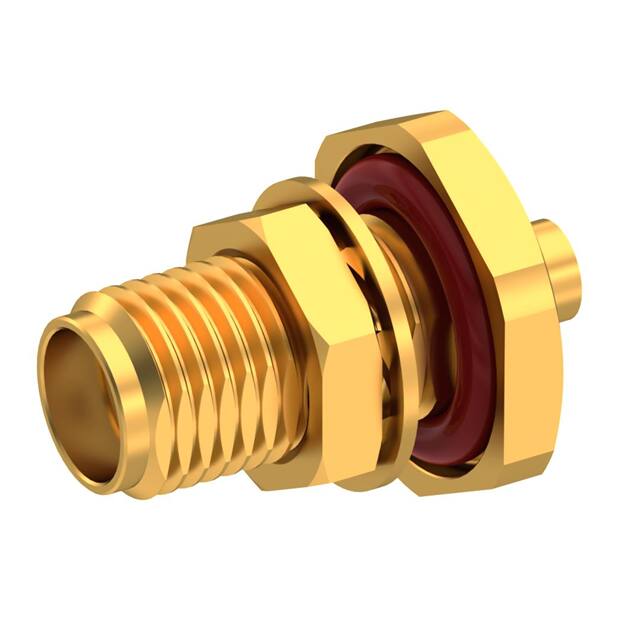

R125326000 Radiall R125326000 is an SMA straight bulkhead jack panel seal coaxial connector with 50 Ohm impedance and 0-18 GHz frequency range. It features solder termination for both contact and shield, and a threaded fastening type.
Mfr Part #:

R125326000

Available from 2 distributors
Mfr Name: Radiall
Radiall
Radiall R125326000 is an SMA straight bulkhead jack panel seal coaxial connector with 50 Ohm impedance and 0-18 GHz frequency range. It features solder termination for both contact and shield, and a threaded fastening type.
✓ Total Stock: 4,023 pcs
$ Price Range: $24.59

R125326000 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
23 pcs
On Request
23 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R125326000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Body Material
Cable Group
Center Contact Material
Center Contact Plating
Connector Style
Connector Type
Contact Termination
Dielectric Withstanding Voltage
Fastening Type
Frequency
Housing Color
Impedance
Insertion Loss
Insulation Resistance
Insulator Material
Mounting Feature
Mounting Type
Number of Ports
Operating Temperature
Shield Termination
VSWR
Voltage Rating
Weight
View Similar Products (0)

R125326000 Description

Short technical summary and product information.

The Radiall R125326000 is an SMA straight bulkhead jack panel seal coaxial connector designed for use with RG-405 (.085" semi-rigid) cable. It features a gold-plated stainless steel body and a beryllium copper center contact with gold plating over nickel. The connector offers a 50 Ohm impedance and operates across a frequency range of 0 to 18 GHz.



Electrical performance includes a maximum VSWR of 1.07 + 0.0080 x F(GHz), maximum insertion loss of 0.03 √F(GHz) dB, and RF leakage of -(90 - F(GHz)) dB max. It is rated for a maximum voltage of 335 Vrms and a minimum dielectric withstanding voltage of 750 Vrms, with a minimum insulation resistance of 5000 MΩ.



Mechanically, the connector is panel mounted with a bulkhead front side nut feature. It has a threaded fastening type and a minimum mating life of 500 cycles. The operating temperature range is -65°C to +105°C. The connector weighs 3.29 g and is packaged in a standard unit of 100 pieces.

R125326000 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Series: SMA
Canonical Name: SMA Straight Bulkhead Jack Panel Seal Connector, Solder Termination, 50 Ohm, 0-18 GHz
Subcategory: SMA Connector

R125326000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R125326000 Estimated Pricing

Qty Low High
100+ $24.59 $24.59

Estimated market price range - modelled values for guidance only, not live distributor offers.

R125326000 Features

  • SMA straight bulkhead jack panel seal connector.
  • 50 Ohm impedance for 0-18 GHz operation.
  • Solder termination for contact and shield.
  • Gold-plated stainless steel body and contacts.
  • Rated for 500 mating cycles minimum.

R125326000 Applications

  • Ideal for RF signal transmission up to 18 GHz.
  • Suitable for panel-mounted bulkhead applications.
  • Used with RG-405 .085 inch semi-rigid cable.
  • Designed for high-reliability military and telecom systems.

R125326000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of the Radiall R125326000 SMA connector?

The impedance is 50 Ohm.

What is the frequency range of the R125326000 connector?

The frequency range is 0 to 18 GHz.

What type of termination does this connector use?

It uses solder termination for both the center contact and shield.

What is the maximum voltage rating for this connector?

The maximum voltage rating is 335 Vrms.

What is the operating temperature range?

The operating temperature range is -65°C to +105°C.

What cable is this connector designed for?

It is designed for RG-405 (.085 inch semi-rigid) cable.

What is the mounting type for this connector?

It is panel mounted with a bulkhead front side nut.
