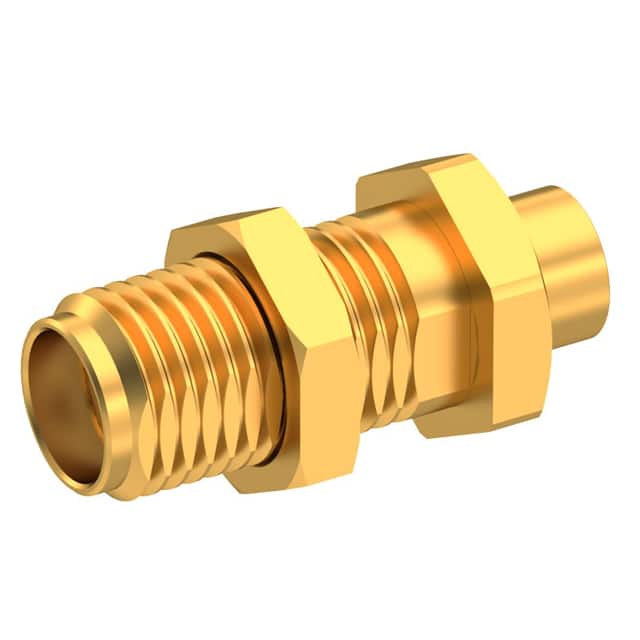

The Radiall R125305000 is an SMA straight bulkhead jack connector (female socket) designed for use with RG-402 (.141" semi-rigid) cable. It features a panel mount configuration with a bulkhead front side nut for secure installation.
Electrically, the connector offers 50 Ohm impedance and operates from DC to 18 GHz. Key electrical specifications include a maximum VSWR of 1.05 + 0.008 x F(GHz), maximum insertion loss of 0.03 sqrt(F(GHz)) dB, and RF leakage of -(90 - F(GHz)) dB maximum. The voltage rating is 500 Veff maximum, with a dielectric withstanding voltage of 1000 Veff minimum and insulation resistance of 5000 MOhm minimum.
Mechanically, the body is made of stainless steel with gold plating (0.5 µm over nickel 2 µm), the center contact is beryllium copper with gold plating (1.3 µm over nickel 2 µm), and the insulator is PTFE. Other parts are brass with gold plating. The connector supports a mating life of 500 cycles minimum and a cable retention pull-off force of 500 N minimum. The recommended panel nut torque is 150 N.cm. Operating temperature range is -65 to +105 °C.
Packaging is in standard unit quantities of 100. This connector is suitable for high-reliability RF applications requiring a robust bulkhead interface.
| Qty | Low | High |
|---|---|---|
| 100+ | $28.07 | $28.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohm.
DC to 18 GHz.
500 Veff maximum.
Panel mount with bulkhead front side nut.
-65 to +105 °C.
RG-402 (.141" semi-rigid) cable.
1.05 + 0.008 x F(GHz) maximum over 0-18 GHz.
