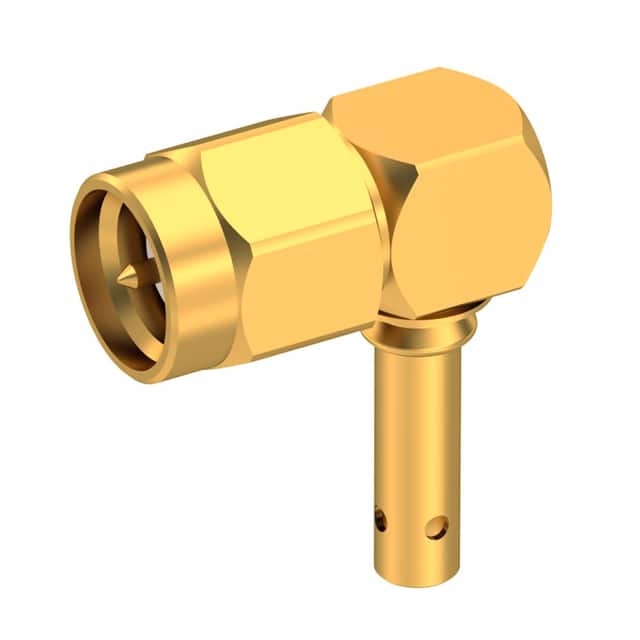

The Radiall R125172000 is an SMA right angle plug connector designed for use with cables such as RG-174, RG-316, and others. It operates over a frequency range of DC to 12.4 GHz with a characteristic impedance of 50Ω. The connector provides a maximum VSWR of 1.15 + 0.03 x F(GHz) and a maximum insertion loss of 0.15 √F(GHz) dB, ensuring reliable signal integrity in high-frequency applications.
The connector body is made of stainless steel with gold plating, and the center contact is brass with gold plating. The insulator is PTFE, and the gasket is fluore silicone. This construction supports a wide operating temperature range of -65°C to +165°C. The connector is rated for a minimum of 500 mating cycles and has a weight of 4.3 g.
It is a free-hanging, right-angle design with a threaded coupling mechanism. The contact termination is either crimp or solder, and the shield termination is solder. The R125172000 is suitable for RF interconnect applications requiring a compact, reliable SMA plug.
| Qty | Low | High |
|---|---|---|
| 1+ | $24.17 | $24.17 |
| 10+ | $20.55 | $20.55 |
| 25+ | $19.26 | $19.26 |
| 50+ | $18.34 | $18.34 |
| 100+ | $17.46 | $17.46 |
| 300+ | $16.16 | $16.16 |
| 500+ | $15.59 | $15.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum voltage rating is 250 Veff.
It is a free hanging (in-line) right angle connector.
The frequency range is DC to 12.4 GHz.
The impedance is 50Ω.
The maximum VSWR is 1.15 + 0.03 x F(GHz) over the frequency range.
The maximum insertion loss is 0.15 √F(GHz) dB.
The operating temperature range is -65°C to +165°C.
