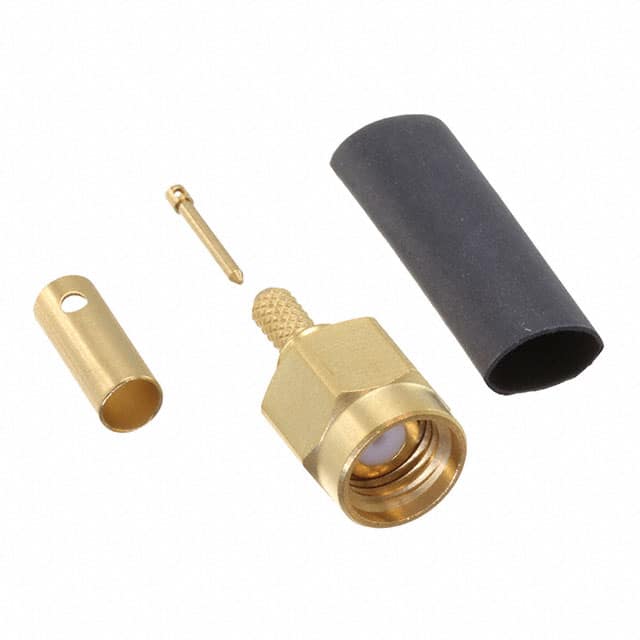

The Radiall R125072000W is an SMA male straight crimp plug designed for use with 2.6/50 coaxial cables. This connector features a 50 Ohm nominal impedance and operates from DC to 12.4 GHz, making it suitable for a wide range of RF applications. Electrical performance includes a maximum VSWR of 1.15 + 0.0200 × F(GHz) and insertion loss of 0.06 × √F(GHz) dB. The connector is rated for 250 V RMS and has a dielectric withstanding voltage of 750 V RMS minimum.
Mechanically, the plug has a free-hanging (in-line) mounting style with crimp termination for both center contact and shield. The body is made of stainless steel with gold over nickel plating, while the center contact is brass with gold plating. The insulator is PTFE, and the gasket is silicone rubber. The connector is designed for a mating torque of 100 N·cm and has a minimum mating life of 500 cycles. It weighs 2.891 grams.
Packaging is standard in quantities of 100 pieces. The R125072000W variant indicates RoHS compliance. This connector is intended for cable assembly with RG-174, RG-316, or similar cables per the datasheet. Note that the cable group information has a conflict between the database (RG-174, RG-316) and the datasheet (RG-188, RG-316, KX 22A), so verify cable compatibility.
| Qty | Low | High |
|---|---|---|
| 1+ | $22.86 | $22.86 |
| 10+ | $19.42 | $19.42 |
| 25+ | $18.21 | $18.21 |
| 50+ | $17.34 | $17.34 |
| 100+ | $16.51 | $16.51 |
| 250+ | $15.48 | $15.48 |
| 500+ | $14.74 | $14.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum voltage rating is 250 V RMS.
Free hanging (in-line) mounting.
50 Ω nominal.
DC to 12.4 GHz.
Minimum 500 cycles.
Maximum 0.06 × √F(GHz) dB.
