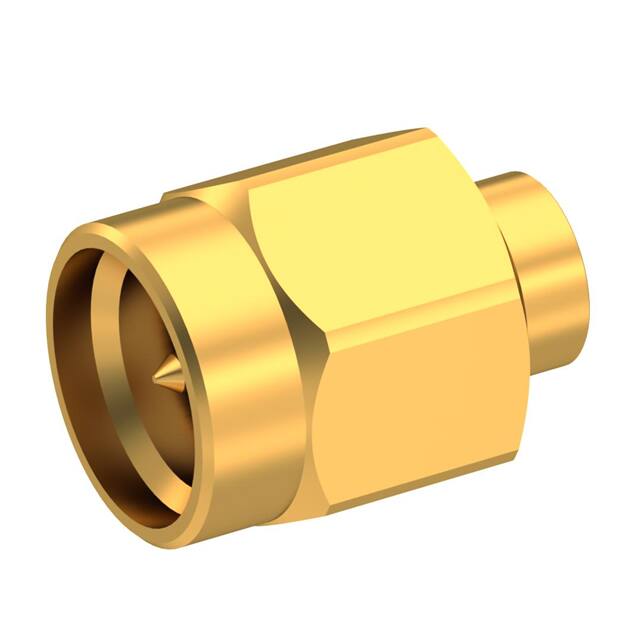

R125055000 Radiall R125055000 is an SMA plug, male pin coaxial connector designed for RG-402 (.141" semi-rigid) cable. It features 50 Ohm impedance, 26.5 GHz maximum frequency, and threaded fastening.
Mfr Part #:

R125055000

Available from 1 distributors
Mfr Name: Radiall
Radiall
Radiall R125055000 is an SMA plug, male pin coaxial connector designed for RG-402 (.141" semi-rigid) cable. It features 50 Ohm impedance, 26.5 GHz maximum frequency, and threaded fastening.
✓ Total Stock: 5 pcs
$ Price Range: $8.96 - $14.60

R125055000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R125055000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Group
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Mounting Type
Number of Ports
Shield Termination
Termination Style
View Similar Products (0)

R125055000 Description

Short technical summary and product information.

The Radiall R125055000 is an SMA plug, male pin coaxial connector assembly designed for use with RG-402 (.141" semi-rigid) cable. This connector provides a 50 Ohm impedance and supports frequencies up to 26.5 GHz, making it suitable for high-frequency RF applications.



The connector features a threaded fastening type for secure coupling and uses solder terminations for both the center contact and shield. The center contact is made of brass, and the housing has a gold color. It is a free hanging (in-line) mounting type, offering flexibility in cable assembly designs.

R125055000 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Series: SMA
Canonical Name: Radiall R125055000 SMA Plug, Male Pin Coaxial Connector for RG-402 Semi-Rigid Cable
Subcategory: SMA Connector

R125055000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Non-Compliant

R125055000 Estimated Pricing

Qty Low High
1+ $14.60 $14.60
10+ $12.40 $12.40
25+ $11.63 $11.63
50+ $11.07 $11.07
100+ $10.54 $10.54
300+ $9.76 $9.76
500+ $9.41 $9.41
1,000+ $8.96 $8.96

Estimated market price range - modelled values for guidance only, not live distributor offers.

R125055000 Features

  • SMA plug connector with male pin.
  • 50 Ohm impedance for RF systems.
  • Operates up to 26.5 GHz frequency.
  • Threaded fastening for secure coupling.
  • Solder termination for center and shield.

R125055000 Applications

  • Used in RF test and measurement setups.
  • Ideal for microwave communication systems.
  • Suitable for semi-rigid cable assemblies.
  • Applied in aerospace and defense electronics.

R125055000 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the impedance of the R125055000 connector?

The R125055000 has a 50 Ohm impedance.

What is the maximum frequency of this SMA connector?

The maximum frequency is 26.5 GHz.

What type of cable does the R125055000 connect to?

It is designed for RG-402 (.141" semi-rigid) cable.

What is the mounting style of this connector?

It is a free hanging (in-line) mounting type.

What termination method does this connector use?

Both the contact and shield use solder termination.
