| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Material | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Insertion Loss (Max) | |
| Insulator Material | |
| Mounting Type | |
| Number of Ports | |
| Operating Temperature Range | |
| Shield Termination | |
| Weight |

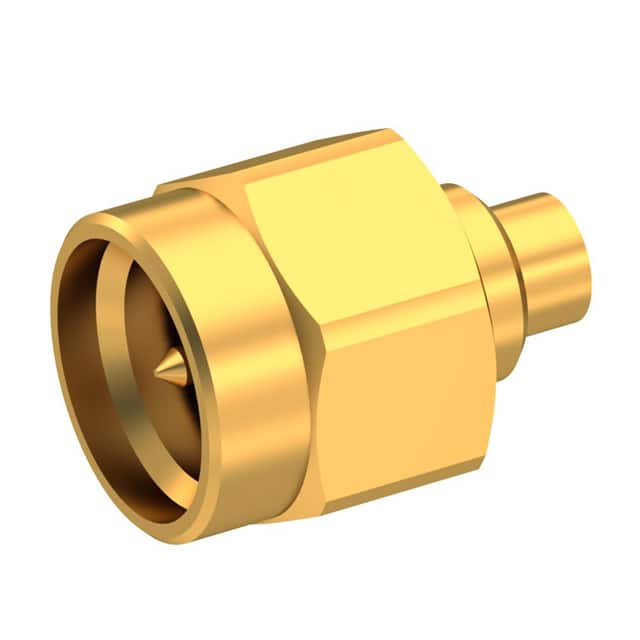

The Radiall R125052500 is an SMA straight plug connector designed for use with RG-405 (.085" semi-rigid) coaxial cable. It features a male pin contact and solder termination for both center contact and shield, ensuring reliable electrical and mechanical connections. The connector body is made of stainless steel with gold plating, providing durability and corrosion resistance.
Electrical performance includes 50 Ohm impedance, a maximum frequency of 18 GHz, low VSWR of 1.07 + 0.008*F(GHz), and insertion loss of 0.03√F(GHz) dB. It is rated for 335 V maximum voltage and has a dielectric withstanding voltage of 750 V minimum. The connector operates over a wide temperature range of -65°C to +105°C.
Mechanically, the connector features a threaded coupling for secure mating, with a recommended mating torque of 100 N·cm. It has a minimum mating life of 500 cycles and a cable retention force of 130 N. The connector is lightweight at 1.800 g and comes in standard packaging of 100 units.
| Qty | Low | High |
|---|---|---|
| 100+ | $20.54 | $20.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
18 GHz.
50 Ohm.
Free Hanging (In-Line).
335 V maximum.
RG-405 (.085" Semi Rigid).
-65°C to +105°C.
100 N·cm recommended.
