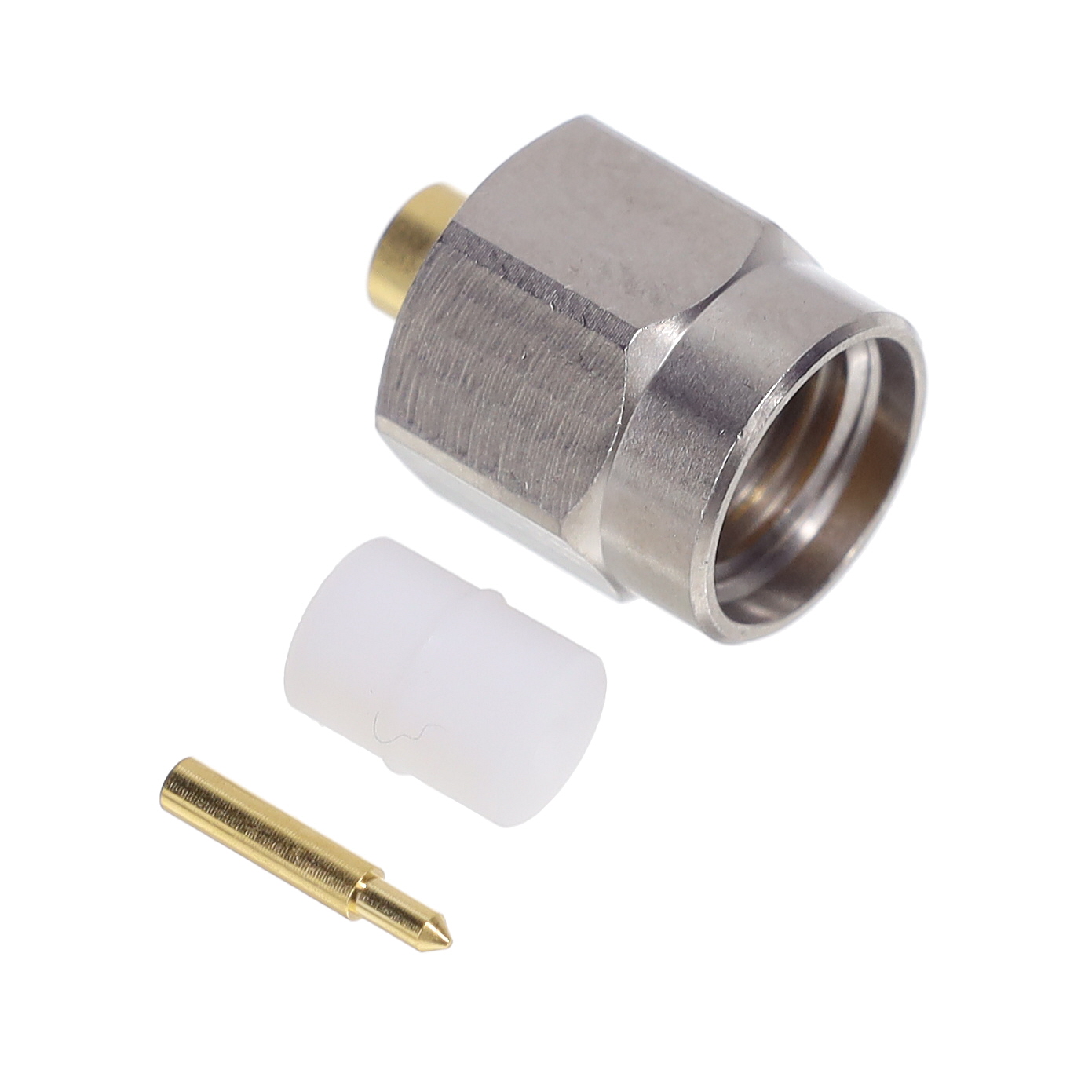

The Radiall R125052002W is an SMA straight plug solder type connector designed for use with RG-405 (.085" semi-rigid) cable. It features a male pin contact with solder termination and threaded coupling for secure mating. The connector offers 50 Ohm impedance and operates across a frequency range of 0 to 18 GHz, making it suitable for high-frequency RF applications.
Electrical characteristics include a maximum VSWR of 1.07 + 0.0080 x F(GHz), insertion loss of 0.03 √F(GHz) dB, and RF leakage of -(90 - F(GHz)) dB. The voltage rating is 335 Veff maximum, with a dielectric withstanding voltage of 750 Veff minimum and insulation resistance of 5000 MΩ minimum.
The connector body is made of stainless steel with gold plating over nickel, and the center contact is brass with gold plating. The insulator is PTFE, and the gasket is silicone rubber. It is designed for free hanging (in-line) mounting and has a cable retention force of 130 N minimum. The mating life is rated at 500 cycles minimum, and the operating temperature range is -65 to +165 °C.
Packaging is in standard units of 100 pieces, with a 'W' option available for cable assembly. The connector weighs approximately 2.3 grams and has a recommended mating torque of 100 N.cm.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.89 | $14.89 |
| 10+ | $12.65 | $12.65 |
| 25+ | $11.86 | $11.86 |
| 50+ | $11.29 | $11.29 |
| 100+ | $10.75 | $10.75 |
| 250+ | $10.08 | $10.08 |
| 500+ | $9.60 | $9.60 |
| 1,000+ | $9.14 | $9.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum voltage rating is 335 Veff.
Free hanging (in-line) mounting.
50 Ohm.
0 to 18 GHz.
RG-405 (.085" semi-rigid) cable and KS 1 cable.
-65 to +165 °C.
1.07 + 0.0080 x F(GHz) maximum.
