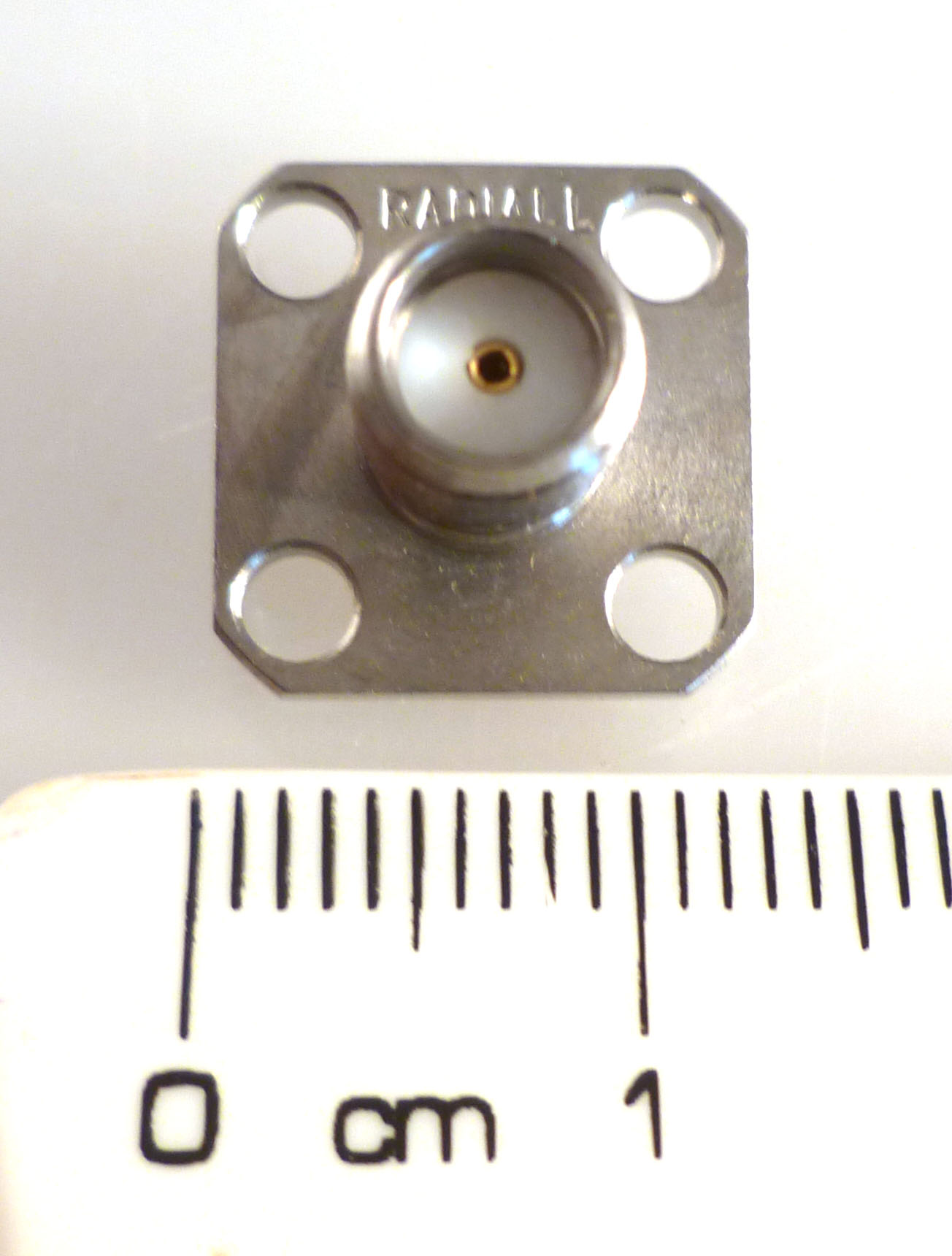

R125-614-011 The Radiall R125-614-011 is a female SMA bulkhead socket with a 50 Ohm impedance. It operates from 0 to 18GHz.
Mfr Part #:

R125-614-011

Available from 1 distributors
Mfr Name: Radiall
Radiall
The Radiall R125-614-011 is a female SMA bulkhead socket with a 50 Ohm impedance. It operates from 0 to 18GHz.
✓ Total Stock: 7 pcs
$ Price Range: $0.38

R125-614-011 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R125-614-011 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Material
Contact Plating
Impedance
Mounting Type
Termination Method
View Similar Products (0)

R125-614-011 Description

Short technical summary and product information.

This Radiall R125-614-011 is a high-quality RF connector featuring a female SMA interface with a 4-hole flange mount for bulkhead applications. It offers a 50 Ohm impedance and a wide operating frequency range from 0 to 18GHz.



The connector has a passivated stainless steel body and gold-plated contacts made of Beryllium Copper. It is designed for solder termination and has a straight body orientation. The operating temperature range is from -65°C to +165°C.



This component is suitable for various RF applications requiring a reliable SMA connection. Its bulkhead mounting capability allows for secure panel integration.

R125-614-011 Quick Information

Product Type: SMA Connector
Canonical Name: Radiall R125-614-011 SMA Bulkhead Socket
Subcategory: SMA Connector

R125-614-011 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R125-614-011 Estimated Pricing

Qty Low High
1+ $0.38 $0.38

Estimated market price range - modelled values for guidance only, not live distributor offers.

R125-614-011 Features

  • Female SMA bulkhead socket connector.
  • 50 Ohm impedance for RF applications.
  • Wide operating frequency from 0 to 18GHz.
  • Durable stainless steel body construction.
  • Gold-plated Beryllium Copper contacts.

R125-614-011 Applications

  • Ideal for RF signal connections.
  • Suitable for panel mount installations.
  • Used in communication systems.
  • Applicable in test and measurement equipment.

R125-614-011 FAQs

6 frequently asked questions generated from this part’s specifications.
What type of coaxial connector is the Radiall R125-614-011?

The Radiall R125-614-011 is an SMA coaxial connector.

What is the impedance of the R125-614-011 connector?

The impedance of the Radiall R125-614-011 is 50 Ohms.

What is the operating frequency range for this SMA connector?

The Radiall R125-614-011 operates from 0 to 18GHz.

What are the minimum and maximum operating temperatures for the R125-614-011?

The minimum operating temperature is -65°C and the maximum is +165°C.

How is the Radiall R125-614-011 mounted?

It is a 4-hole flange mount type.

What material are the contacts made of and how are they plated?

The contacts are made of Beryllium Copper and plated with Gold over Nickel.
