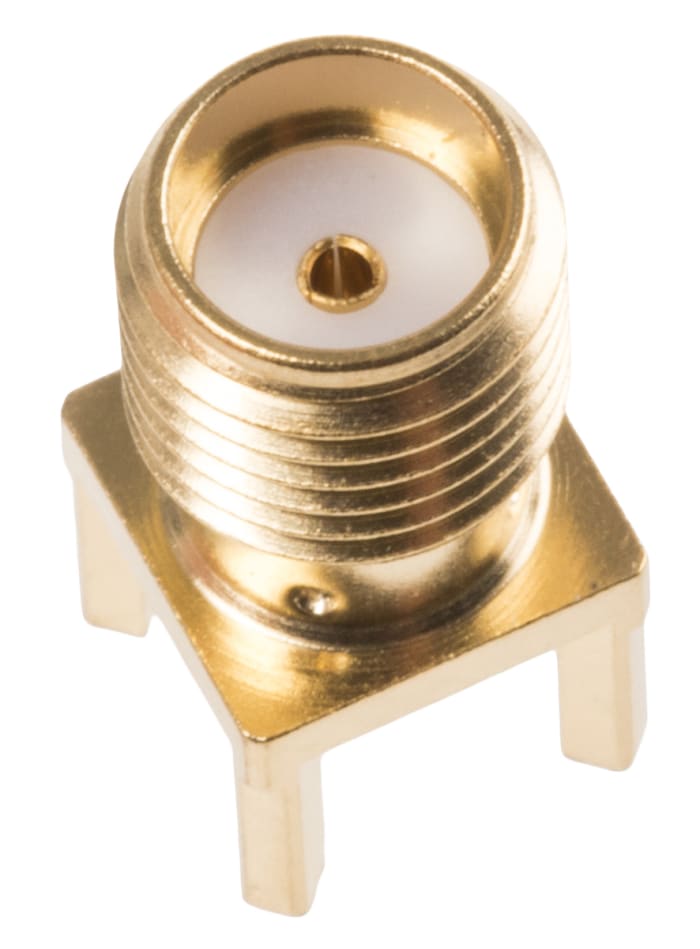

R124426123W This Radiall SMA-COM series connector is a female PCB mount jack with a 50 Ohm impedance and 18 GHz operating frequency.
Mfr Part #:

R124426123W

Available from 1 distributors
Mfr Name: Radiall
Radiall
This Radiall SMA-COM series connector is a female PCB mount jack with a 50 Ohm impedance and 18 GHz operating frequency.
✓ Total Stock: 98 pcs
$ Price Range: $1.00

R124426123W Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
98 pcs
On Request
98 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R124426123W Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Center Contact Material
Connector Style
Connector Type
Contact Plating
Contact Termination
Failure Rate
Fastening Type
Frequency
Housing Color
Impedance
Mounting Type
Number of Ports
Orientation
Shield Termination
Termination Style
View Similar Products (0)

R124426123W Description

Short technical summary and product information.

The Radiall R124426123W is a female SMA coaxial connector designed for PCB mounting. It features a straight body orientation and a solder termination type. With a standard impedance of 50 Ohms, this connector is suitable for applications operating up to 18 GHz.



The connector has a beryllium copper alloy contact material with gold plating, and a gold-plated brass body. It operates within a temperature range of -65°C to 165°C. The SMA-COM series designation indicates its intended use in commercial applications.



This component is designed for reliable RF signal transmission in various electronic systems. Its robust construction and material plating ensure durability and performance in demanding environments.

R124426123W Quick Information

Product Type: Coaxial Connector
Series: SMA-COM
Canonical Name: Radiall SMA-COM Series PCB Female SMA Connector, 50 Ohm, Straight
Subcategory: RF Coaxial Connector Assemblies

R124426123W Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R124426123W Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

R124426123W Features

  • 50 Ohm impedance for RF applications.
  • 18 GHz maximum operating frequency.
  • Female SMA connector for PCB mounting.
  • Straight body with solder termination.
  • Gold plated contacts and body.

R124426123W Applications

  • Ideal for RF signal connections.
  • Suitable for PCB mounted systems.
  • Used in high-frequency applications.
  • Reliable signal transmission required.

R124426123W FAQs

6 frequently asked questions generated from this part’s specifications.
What is the impedance of the Radiall R124426123W connector?

The impedance of the Radiall R124426123W connector is 50 Ohms.

What is the maximum operating frequency for this SMA connector?

The maximum operating frequency for the Radiall R124426123W connector is 18 GHz.

What type of connector gender and mounting is this Radiall part?

This is a female SMA connector designed for PCB mounting.

What is the termination type for the Radiall R124426123W connector?

The termination type for this connector is solder.

What are the operating temperature limits for this connector?

The operating temperature range is from -65°C to 165°C.

What material is used for the contacts and body plating?

The contact material is Beryllium Copper Alloy with gold plating, and the body is gold plated.
