| Category | |
| Manufacturer Name | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Contact Resistance | |
| Insulation Resistance | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Termination Style |

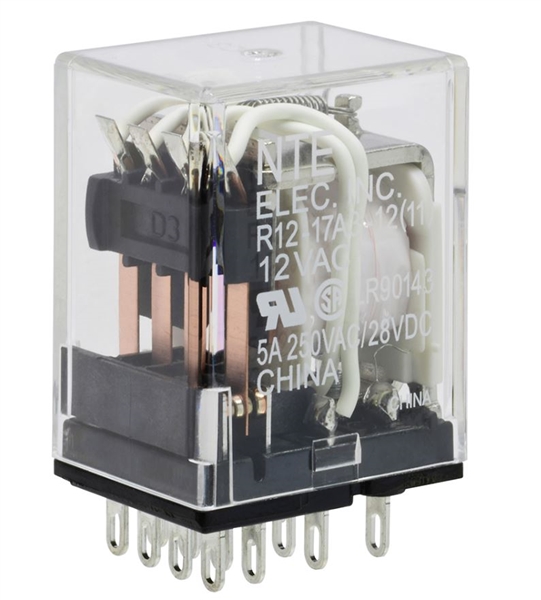

The NTE Electronics R12-17A3-12 is a general purpose relay designed for various applications. It features a 4PDT (4 Form C) contact arrangement and operates with a 12VAC coil.
This relay is rated to handle a maximum contact current of 5 Amps at 240VAC or 28VDC. The coil consumes a nominal power of 1.2VA. Electrical specifications include a contact resistance of 100 milliohms maximum at 6VDC and 1A. Insulation characteristics are robust, with dielectric strength ratings of 1500 VRMS between contact and coil, 1000 VRMS across open contacts, and 1500 VRMS from coil to frame. Insulation resistance is a minimum of 100 megohms at 500VDC.
Operational characteristics include an operate time of 25ms or less and a release time of 25ms or less at nominal coil voltage. The relay is designed for continuous duty cycle. Environmental specifications indicate an operating temperature range of -30°C to +55°C.
The R12-17A3-12 utilizes plug-in termination for ease of installation. It is built with silver cad-oxide contact material. Additional features include a see-thru plastic cover and a weight of approximately 1.5 oz (45 grams).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage for the R12-17A3-12 relay is 12VAC.
The contact rating is 5A at 240VAC/28VDC.
The contact form is 4PDT (4 Form C).
The operate and release times are both 25ms or less.
The operating temperature range is -30°C to +55°C.
