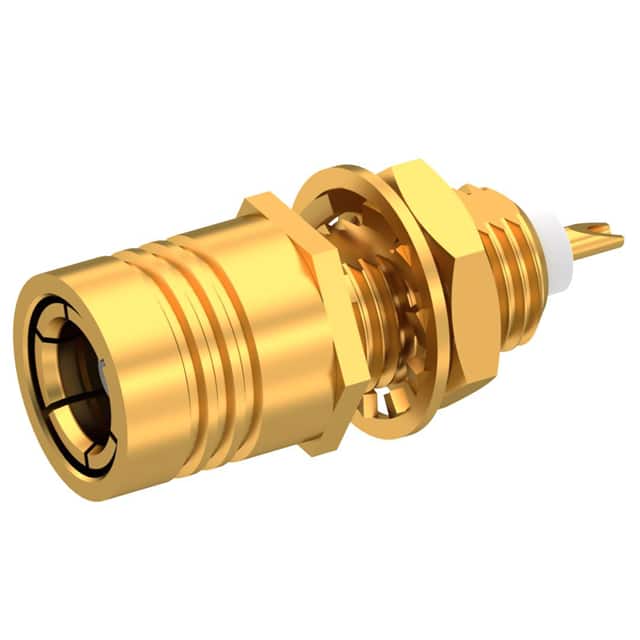

R115556000 SMB straight bulkhead plug receptacle with female socket, 50 Ohm impedance, 4 GHz frequency rating. Panel mount with bulkhead rear side nut and solder cup termination.
Mfr Part #:

R115556000

Available from 1 distributors
Mfr Name: Radiall
Radiall
SMB straight bulkhead plug receptacle with female socket, 50 Ohm impedance, 4 GHz frequency rating. Panel mount with bulkhead rear side nut and solder cup termination.
✓ Total Stock: 21 pcs
$ Price Range: $46.05

R115556000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
21 pcs
On Request
21 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R115556000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Features
Frequency
Housing Color
Impedance
Mounting Feature
Mounting Type
Number of Ports
Shield Termination
Termination Style
View Similar Products (0)

R115556000 Description

Short technical summary and product information.

This is an SMB coaxial connector plug from Radiall, part number R115556000. It features a female socket contact and is designed for panel mounting with a bulkhead rear side nut. The connector offers a 50 Ohm impedance and supports frequencies up to 4 GHz.



The connector uses a snap-on fastening type for quick mating. Contact termination is via solder cup, and shield termination is solder. The center contact is made of beryllium copper and bronze, and the housing is gold plated. It includes extended insulation for improved performance.



This connector is suitable for RF applications requiring a reliable 50 Ohm interface. The panel mount design allows for secure installation in bulkhead applications. The solder cup termination simplifies cable assembly.

R115556000 Quick Information

Product Type: SMB Coaxial Connector Plug
Canonical Name: SMB Connector Plug, Female Socket, 50 Ohm, Panel Mount, Bulkhead - Rear Side Nut, Solder Cup Termination
Subcategory: SMB Connector Plug

R115556000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R115556000 Estimated Pricing

Qty Low High
25+ $46.05 $46.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

R115556000 Features

  • 50 Ohm impedance SMB coaxial connector plug.
  • Rated for frequencies up to 4 GHz.
  • Panel mount with bulkhead rear side nut.
  • Solder cup contact and shield termination.
  • Gold plated housing with extended insulation.

R115556000 Applications

  • Ideal for RF signal connections in test equipment.
  • Used in telecommunications infrastructure.
  • Suitable for instrumentation and measurement systems.

R115556000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of this connector?

50 Ohms.

What is the maximum frequency rating?

4 GHz.

What type of connector is this?

SMB plug with female socket.

How is this connector mounted?

Panel mount with bulkhead rear side nut.

What is the fastening type?

Snap-on.

What is the contact termination method?

Solder cup.

What is the center contact material?

Beryllium copper and bronze.
