| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Features | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

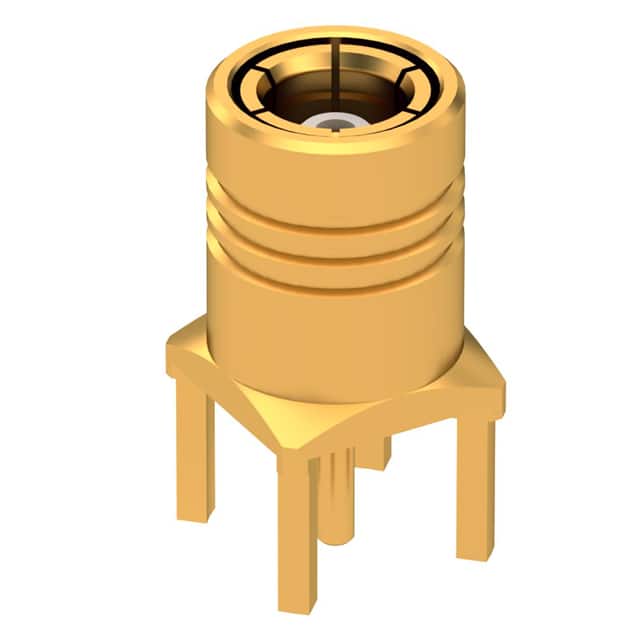

The Radiall R115427000 is an SMB-style coaxial connector assembly designed for RF applications requiring reliable signal transmission up to 4 GHz. It features a plug connector type with a female socket contact, providing a secure threaded fastening mechanism for stable connections.
This connector offers a characteristic impedance of 50 Ohms, making it suitable for standard RF systems. The center contact is made of beryllium copper, ensuring good conductivity and durability. The housing is gold colored, and the connector includes a limited detent feature for controlled engagement.
Mounting is through hole with solder termination for both the contact and shield, facilitating straightforward assembly onto printed circuit boards. The single-port design is compact and suited for space-constrained layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $18.63 | $18.63 |
| 10+ | $15.83 | $15.83 |
| 25+ | $14.84 | $14.84 |
| 50+ | $14.13 | $14.13 |
| 100+ | $13.46 | $13.46 |
| 250+ | $12.61 | $12.61 |
| 500+ | $12.01 | $12.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Plug, female socket; SMB style.
50 Ohms.
4 GHz.
Through hole.
Threaded.
Solder.
Beryllium copper.
