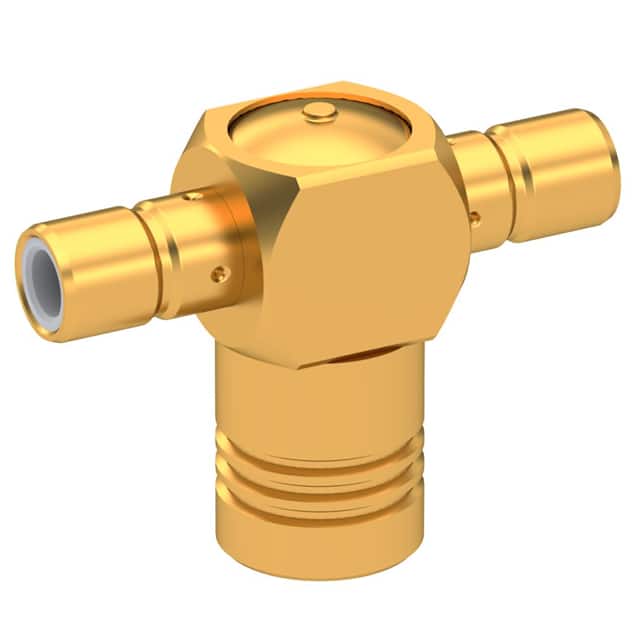

R114780000 Radiall R114780000 is an SMB T-Shape adapter converting an SMB plug (female socket) to two SMB jacks (male pins). It features 50 Ohm impedance, 4 GHz frequency range, and gold plated contacts.
Mfr Part #:

R114780000

Available from 1 distributors
Mfr Name: Radiall
Radiall
Radiall R114780000 is an SMB T-Shape adapter converting an SMB plug (female socket) to two SMB jacks (male pins). It features 50 Ohm impedance, 4 GHz frequency range, and gold plated contacts.
✓ Total Stock: 4 pcs
$ Price Range: $35.90

R114780000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R114780000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adapter Series
Adapter Type
Body Material
Center Contact Material
Center Contact Plating
Center Gender
Conversion Type
Convert From (Adapter End)
Convert To (Adapter End)
Dielectric Withstanding Voltage
Fastening Type
Frequency
Impedance
Insertion Loss
Insulation Resistance
Insulator Material
Mounting Type
Operating Temperature
Style
Voltage Rating
Weight
View Similar Products (0)

R114780000 Description

Short technical summary and product information.

The Radiall R114780000 is a T-Shape coaxial adapter within the SMB series, designed for in-line, free-hanging applications. It converts a single SMB plug with a female socket into two SMB jacks with male pins, enabling signal splitting or distribution in RF systems.



This adapter operates over a frequency range of 0 to 4 GHz with a characteristic impedance of 50 Ohms. It is constructed with a brass body and beryllium copper center and outer contacts, all plated with gold for reliable conductivity and corrosion resistance. The insulator is made of PTFE.



Key electrical specifications include a maximum insertion loss of 0.5 √F(GHz) dB, RF leakage of -(57 - F(GHz)) dB, a voltage rating of 500 Veff, and an insulation resistance of 1000 MOhm minimum. The adapter is rated for 500 mating cycles and operates over a temperature range of -65 to +165 °C.

R114780000 Quick Information

Product Type: Coaxial Connector (RF) Adapter
Series: SMB
Canonical Name: Radiall R114780000 SMB T-Shape Plug to Jack Adapter
Subcategory: T-Shape Adapter

R114780000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R114780000 Estimated Pricing

Qty Low High
100+ $35.90 $35.90

Estimated market price range - modelled values for guidance only, not live distributor offers.

R114780000 Features

  • SMB T-Shape plug to dual-jack adapter.
  • 50 Ohm impedance for RF systems.
  • 4 GHz maximum operating frequency.
  • Gold plated brass body and contacts.
  • Snap-on fastening for secure connection.

R114780000 Applications

  • RF signal splitting and distribution.
  • In-line coaxial cable connections.
  • Test and measurement setups.
  • Telecommunications infrastructure.

R114780000 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the impedance of the Radiall R114780000 adapter?

The impedance is 50 Ohms.

What is the maximum frequency of this SMB adapter?

The maximum frequency is 4 GHz.

What is the voltage rating of the R114780000?

The voltage rating is 500 Veff maximum.

What is the operating temperature range?

The operating temperature range is -65 to +165 °C.

What is the mounting type for this adapter?

The mounting type is Free Hanging (In-Line).

What materials are used in the construction?

The body is brass, center and outer contacts are beryllium copper, and the insulator is PTFE. All are gold plated.
