R114670000 SMB right angle bulkhead jack, male pin, 50 Ohm impedance, 4 GHz frequency. Panel mount with rear side nut, solder cup termination.
Mfr Part #:

R114670000

Available from 1 distributors
Mfr Name: Radiall
Radiall
SMB right angle bulkhead jack, male pin, 50 Ohm impedance, 4 GHz frequency. Panel mount with rear side nut, solder cup termination.
✓ Total Stock: 157 pcs
$ Price Range: $18.33

R114670000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
157 pcs
On Request
157 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R114670000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Features
Frequency
Housing Color
Impedance
Mounting Feature
Mounting Type
Number of Ports
Shield Termination
Termination Style
View Similar Products (0)

R114670000 Description

Short technical summary and product information.

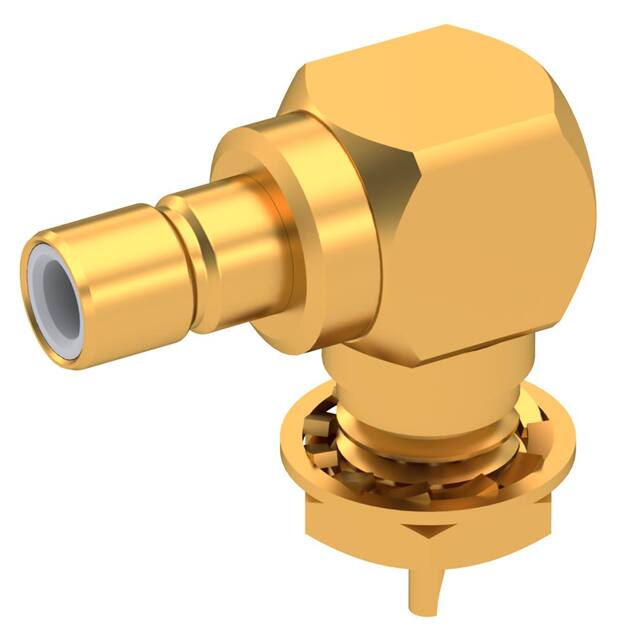

The Radiall R114670000 is an SMB coaxial connector assembly featuring a right angle bulkhead jack with male pin contact. It is designed for panel mounting with a bulkhead rear side nut, providing a secure installation in restricted spaces. The connector uses a snap-on fastening mechanism for quick mating and disconnection.



Electrically, this connector offers a 50 Ohm impedance and supports frequencies up to 4 GHz, making it suitable for RF applications. The contact termination is solder cup for the center pin, and the shield is terminated via solder. The center contact is made of brass, and the housing has a gold finish.



This connector includes extended insulation for enhanced isolation. It is a single-port device, ideal for use in telecommunications, networking, and test equipment where reliable RF interconnections are required.

R114670000 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Canonical Name: SMB Right Angle Bulkhead Jack, Male Pin, 50 Ohm
Subcategory: SMB Connector

R114670000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R114670000 Estimated Pricing

Qty Low High
100+ $18.33 $18.33

Estimated market price range - modelled values for guidance only, not live distributor offers.

R114670000 Features

  • SMB snap-on fastening for quick mating.
  • 50 Ohm impedance for RF applications.
  • Right angle bulkhead mount saves space.
  • Solder cup contact termination.
  • Gold housing finish for corrosion resistance.

R114670000 Applications

  • Ideal for RF signal connections up to 4 GHz.
  • Used in telecommunications and networking equipment.
  • Suitable for panel mounting in confined spaces.

R114670000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the mounting type of this connector?

Panel mount, right angle, with bulkhead rear side nut.

What is the impedance of the R114670000?

50 Ohm.

What is the maximum frequency rating?

4 GHz.

What type of connector is this?

SMB jack with male pin.

What termination does the connector use?

Solder cup for the center contact and solder for the shield.

What fastening mechanism does it have?

Snap-on fastening.

What is the center contact material?

Brass.
