| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Industrial Grade | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

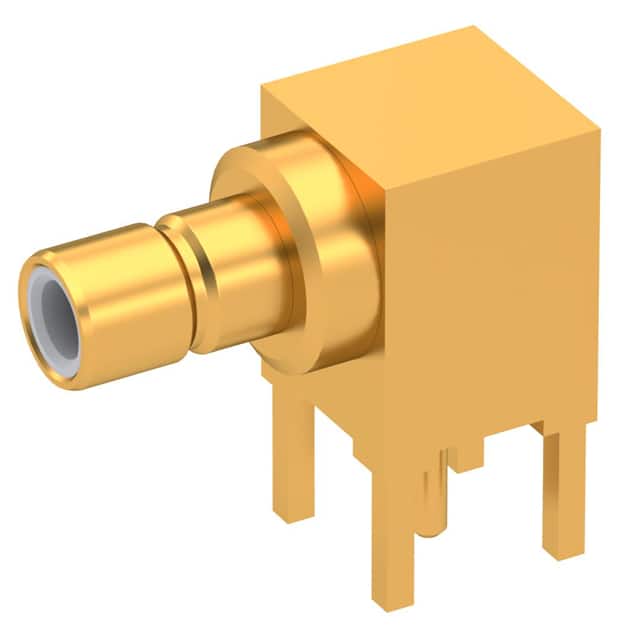

The Radiall R114665000 is an SMB male jack coaxial connector designed for through hole right angle mounting. It features a snap-on fastening type and solder contact and shield termination for reliable connections. The connector has a 50 Ohm impedance and is rated for operation up to 4 GHz.
The center contact is made of brass and the housing has a gold color finish. This single-port connector is suitable for RF applications requiring a compact and secure SMB interface. The through hole right angle mounting allows for space-saving PCB layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.08 | $11.08 |
| 10+ | $9.41 | $9.41 |
| 25+ | $8.82 | $8.82 |
| 50+ | $8.40 | $8.40 |
| 100+ | $8.00 | $8.00 |
| 300+ | $7.40 | $7.40 |
| 500+ | $7.14 | $7.14 |
| 1,000+ | $6.80 | $6.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a Jack, Male Pin connector with SMB style.
The impedance is 50 Ohm.
The maximum frequency is 4 GHz.
It uses Through Hole, Right Angle mounting.
The fastening type is Snap-On.
The contact termination is Solder.
