R114554000W
Radiall

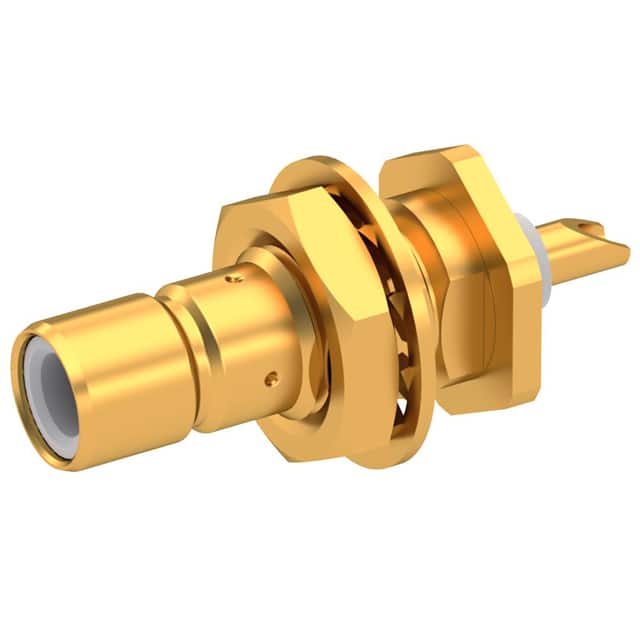

The Radiall R114554000W is an SMB coaxial connector jack with male pin, 50 Ohm impedance, 4 GHz frequency, panel mount with bulkhead front side nut, and solder cup contacts.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Features | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |
This Radiall R114554000 is a coaxial connector assembly, specifically an SMB bulkhead jack receptacle with a male pin. It is designed for panel mounting with a front-side nut and a snap-on fastening type.
The connector offers a 50 Ohm impedance and can operate at frequencies up to 4 GHz. The center contact is made of brass, and the contact termination is a solder cup, with shield termination also being solder. The housing color is gold, and it features extended insulation.
This part is suitable for applications requiring reliable RF connections. Its construction and mounting style make it ideal for integration into panels and enclosures. The connector is supplied in bulk packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Radiall R114554000 is an SMB bulkhead jack receptacle.
The impedance of the R114554000 connector is 50 Ohm.
The R114554000 operates at frequencies up to 4 GHz.
The R114554000 connector is designed for panel mounting.
The contact termination for the R114554000 is a solder cup.
