R114553000W
Radiall

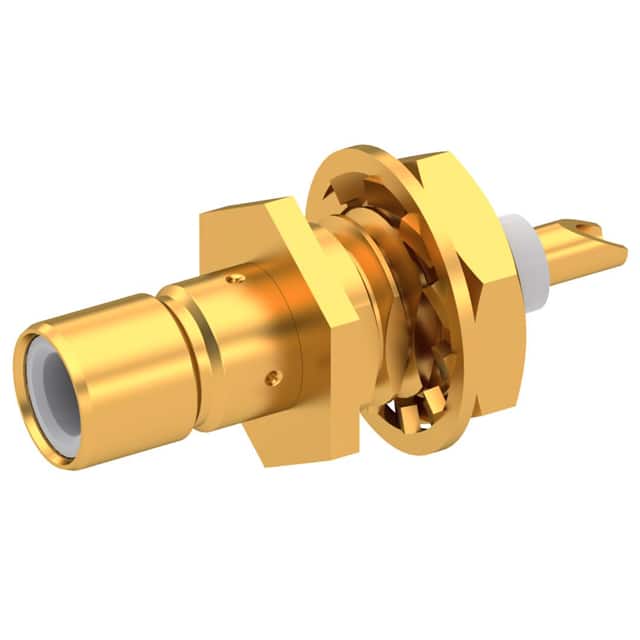

Radiall R114553000W is an SMB bulkhead jack receptacle with male pin contact, 50 Ohm impedance, and 4 GHz frequency rating. Features solder cup contact termination and snap-on fastening.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |
The Radiall R114553000 is an SMB male jack coaxial connector designed for RF applications. It features a panel mount bulkhead design with rear side nut for secure installation. The connector offers 50 Ohm impedance and supports frequencies up to 4 GHz, making it suitable for various wireless and communication systems.
The connector uses snap-on fastening for quick and reliable mating. Contact termination is via solder cup, and shield termination is solder type. The center contact is made of brass, and the housing has a gold finish. With a single port configuration, this connector is ideal for point-to-point connections in RF assemblies.
This SMB connector from Radiall is designed for RF applications requiring compact size and reliable performance in high-frequency environments. The panel mount bulkhead feature allows for easy integration into enclosures and chassis.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.93 | $14.93 |
| 10+ | $12.69 | $12.69 |
| 25+ | $11.89 | $11.89 |
| 50+ | $11.32 | $11.32 |
| 100+ | $10.78 | $10.78 |
| 300+ | $9.98 | $9.98 |
| 500+ | $9.63 | $9.63 |
| 1,000+ | $9.17 | $9.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
SMB
Jack, Male Pin
50 Ohm
4 GHz
Panel Mount
Bulkhead - Rear Side Nut
Snap-On
