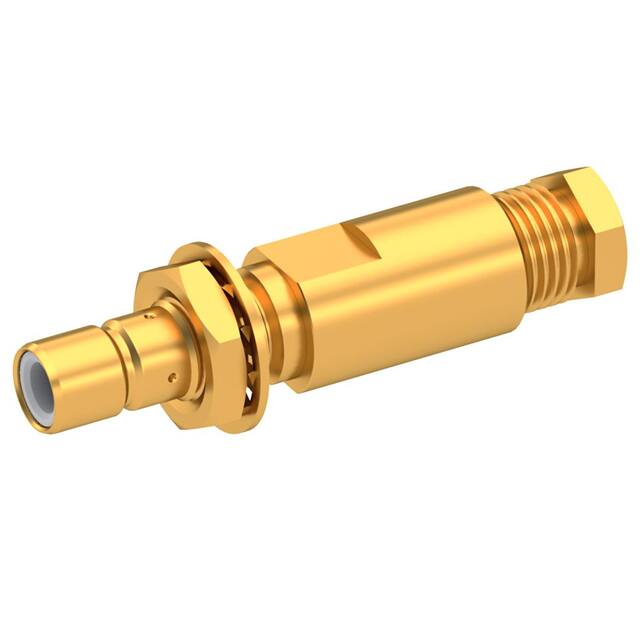

The Radiall R114303000 is an SMB straight bulkhead jack coaxial connector designed for reliable RF connections in panel-mount applications. It features a 50 Ohm impedance and operates from DC to 4 GHz, making it suitable for a wide range of RF systems.
Electrical performance includes a maximum VSWR of 1.30 + 0.040 x F(GHz) and insertion loss of 0.25 √F(GHz) dB. The connector is rated for 250 Veff maximum voltage and 750 Veff dielectric withstanding voltage, with insulation resistance of 1000 MOhm minimum. RF leakage is specified as -(57 - F(GHz)) dB minimum.
Mechanically, the connector uses a snap-on fastening type and bulkhead front-side nut mounting. The center contact is brass with gold plating, and the body is brass with gold plating. The insulator is PTFE, and the gasket is chloroprene. Termination is solder for the center contact and clamp for the shield. It is designed for use with RG-178 and RG-196 cables.
| Qty | Low | High |
|---|---|---|
| 100+ | $19.43 | $19.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohms.
DC to 4 GHz.
250 Veff maximum.
Panel mount with bulkhead front-side nut.
RG-178 and RG-196 cables.
