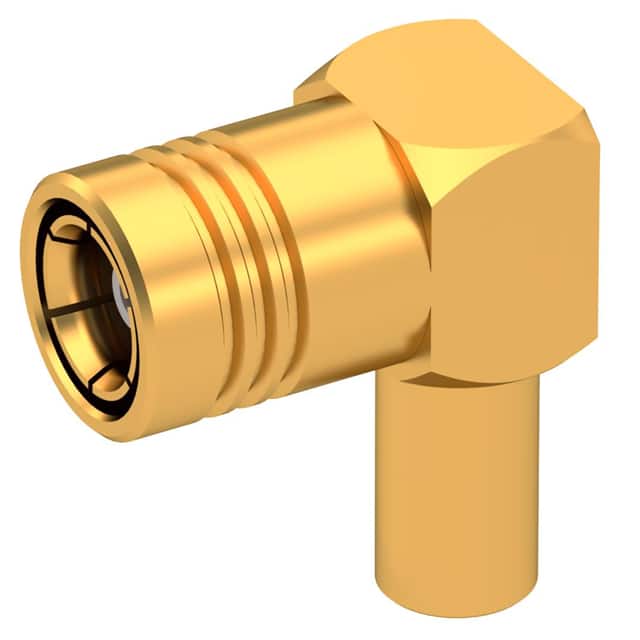

R114185000 Radiall R114185000 is an SMB right angle plug with female socket, crimp termination, 50 Ohm impedance, and 4 GHz max frequency. Designed for RG-174, 179, 187, 188, 316 cables.
Mfr Part #:

R114185000

Available from 1 distributors
Mfr Name: Radiall
Radiall
Radiall R114185000 is an SMB right angle plug with female socket, crimp termination, 50 Ohm impedance, and 4 GHz max frequency. Designed for RG-174, 179, 187, 188, 316 cables.
✓ Total Stock: 5 pcs
$ Price Range: $14.15

R114185000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R114185000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Group
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Mounting Type
Number of Ports
Shield Termination
View Similar Products (0)

R114185000 Description

Short technical summary and product information.

The Radiall R114185000 is an SMB connector plug with a female socket contact, designed for right angle, free-hanging (in-line) mounting. It features a snap-on fastening type and crimp termination for both contact and shield.



Electrical specifications include a 50 Ohm impedance and a maximum frequency of 4 GHz. The center contact is made of beryllium copper, and the housing is gold-plated. The connector is compatible with cable groups RG-174, 179, 187, 188, and 316.



This connector is a single-port coaxial connector assembly suitable for RF applications requiring reliable signal transmission up to 4 GHz. The right angle design allows for space-saving installations in tight spaces.

R114185000 Quick Information

Product Type: SMB RF Connector Plug
Canonical Name: Radiall R114185000 SMB Right Angle Plug, Female Socket, Crimp Termination
Subcategory: SMB Connectors

R114185000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R114185000 Estimated Pricing

Qty Low High
100+ $14.15 $14.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

R114185000 Features

  • SMB right angle plug with female socket.
  • Crimp termination for contact and shield.
  • 50 Ohm impedance, 4 GHz maximum frequency.
  • Compatible with RG-174/179/187/188/316 cables.
  • Snap-on fastening for quick connection.

R114185000 Applications

  • Ideal for RF signal connections in test equipment.
  • Used in telecommunications and networking gear.
  • Suitable for cable assemblies requiring right angle routing.
  • Applicable in wireless communication modules.

R114185000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the mounting style of the R114185000?

Free hanging (in-line), right angle.

What is the impedance of this connector?

50 Ohm.

What is the maximum frequency rating?

4 GHz.

What cable types are compatible with this connector?

RG-174, 179, 187, 188, 316.

What termination method does it use?

Crimp for both contact and shield.

What is the fastening type?

Snap-on.

What is the housing color?

Gold.

R114185000 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
R114185000W
R114185000W
Radiall
SMB / RIGHT ANGLE PLUG CRIMP TYP
View Part
