R114163000 SMB right angle plug connector with female socket, 50 Ohm impedance, 4 GHz max frequency. Free hanging, snap-on fastening, solder contact termination, clamp shield termination.
Mfr Part #:

R114163000

Available from 1 distributors
Mfr Name: Radiall
Radiall
SMB right angle plug connector with female socket, 50 Ohm impedance, 4 GHz max frequency. Free hanging, snap-on fastening, solder contact termination, clamp shield termination.
✓ Total Stock: 1 pcs
$ Price Range: $22.13

R114163000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R114163000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Group
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Mounting Type
Number of Ports
SVHC Present
Shield Termination
View Similar Products (0)

R114163000 Description

Short technical summary and product information.

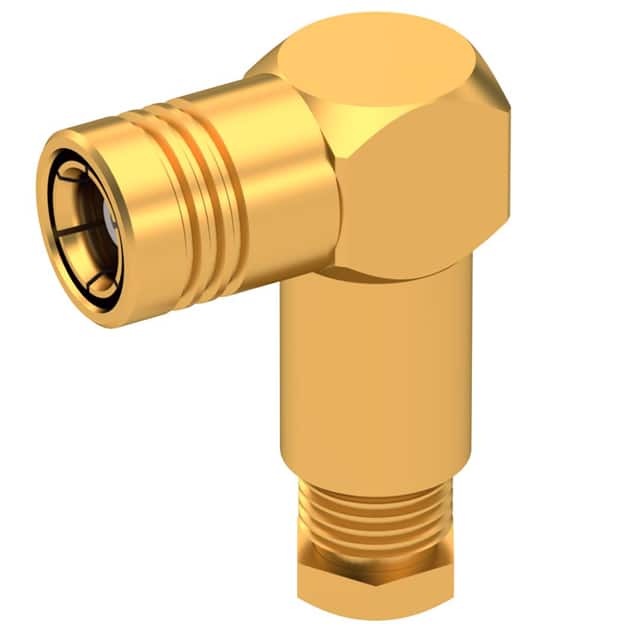

The R114163000 is a coaxial connector (RF) assembly from Radiall. It is an SMB style right angle plug with a female socket. The connector is designed for free hanging (in-line) mounting with a right angle orientation. Fastening is snap-on, contact termination is solder, and shield termination is clamp. The impedance is 50 Ohm with a maximum frequency of 4 GHz. The center contact is made of beryllium copper, and the housing is gold. This connector is compatible with RG-178 and RG-196 cable groups. It is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited) — all compliance statements are unverified.

R114163000 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Canonical Name: SMB Right Angle Plug, Female Socket, Free Hanging, 50 Ohm, 4 GHz
Subcategory: SMB Connector

R114163000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R114163000 Estimated Pricing

Qty Low High
100+ $22.13 $22.13

Estimated market price range - modelled values for guidance only, not live distributor offers.

R114163000 Features

  • SMB right angle plug connector.
  • Female socket with 50 Ohm impedance.
  • Snap-on fastening for quick connection.
  • Solder contact and clamp shield termination.
  • Supports RG-178 and RG-196 cables.

R114163000 Applications

  • Ideal for RF signal connections up to 4 GHz.
  • Used in telecommunications and test equipment.
  • Suitable for cable assemblies requiring right angle orientation.

R114163000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the connector style of the R114163000?

The connector style is SMB.

What is the impedance of this connector?

The impedance is 50 Ohm.

What is the maximum frequency rating?

The maximum frequency is 4 GHz.

What mounting type does this connector support?

The mounting type is free hanging (in-line) and right angle.

What cable groups are compatible with the R114163000?

The cable groups are RG-178 and RG-196.

What is the center contact material?

The center contact material is beryllium copper.

What is the fastening type?

The fastening type is snap-on.
