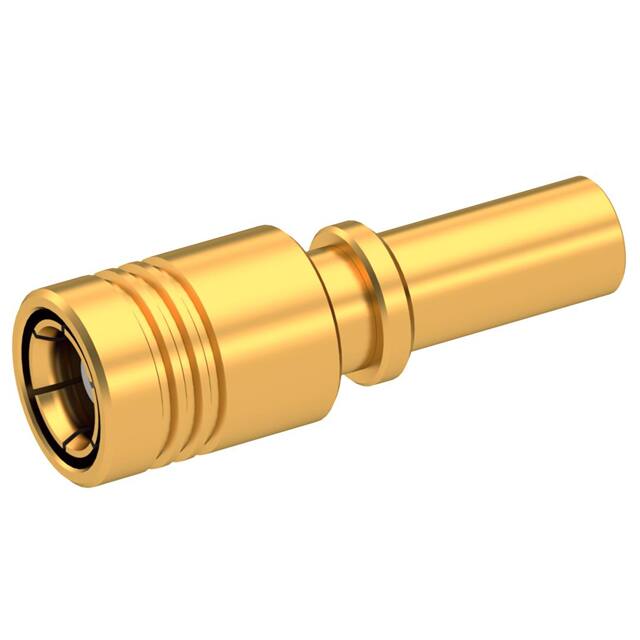

R114082000 The Radiall R114082000 is an SMB straight plug RF connector designed for coaxial applications. It features a 4 GHz maximum frequency and 50 Ohm impedance.
Mfr Part #:

R114082000

Available from 1 distributors
Mfr Name: Radiall
Radiall
The Radiall R114082000 is an SMB straight plug RF connector designed for coaxial applications. It features a 4 GHz maximum frequency and 50 Ohm impedance.
✓ Total Stock: 10 pcs
$ Price Range: $1.00

R114082000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R114082000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Group
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Mounting Type
Number of Ports
Shield Termination
Termination Style
View Similar Products (0)

R114082000 Description

Short technical summary and product information.

This Radiall R114082000 is an RF connector belonging to the SMB series. It is a straight plug with a crimp termination style, suitable for coaxial cables such as RG-174, RG-179, and RG-316. The connector has a maximum operating frequency of 4 GHz and a standard impedance of 50 Ohms.



Designed for inline applications, this connector features a free hanging mounting type and a snap-on fastening mechanism. The center contact is made of Beryllium Copper, and the housing is gold-plated. It is a single-port connector.



The R114082000 is supplied in a standard package of 100 units. It is RoHS3 compliant and has an MSL of 1, indicating unlimited shelf life under standard conditions.

R114082000 Quick Information

Product Type: RF Connector / Coaxial Connector
Canonical Name: SMB Straight Plug Crimp Type RF Connector
Subcategory: Coaxial Connector

R114082000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R114082000 Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

R114082000 Features

  • SMB straight plug RF connector.
  • 4 GHz maximum frequency.
  • 50 Ohm impedance.
  • Crimp termination style.
  • Free hanging mounting type.

R114082000 Applications

  • Suitable for RF communication systems.
  • Used in test and measurement equipment.
  • Ideal for high-frequency signal connections.
  • Applicable in aerospace and defense RF modules.
  • Designed for coaxial cable assemblies.

R114082000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum frequency for the R114082000 connector?

The maximum frequency for the R114082000 connector is 4 GHz.

What is the impedance of the R114082000 RF connector?

The impedance of the R114082000 RF connector is 50 Ohm.

What type of connector is the R114082000?

The R114082000 is an SMB straight plug, female socket type RF connector.

How is the R114082000 connector terminated?

The R114082000 connector features crimp termination for both contact and shield.

What cable types are compatible with the R114082000 connector?

The R114082000 connector is compatible with cable groups RG-174, RG-179, and RG-316.

What is the mounting type for the R114082000 connector?

The R114082000 connector has a free hanging (in-line) mounting type.

What is the standard package quantity for the R114082000?

The standard package quantity for the R114082000 is 100 units.
