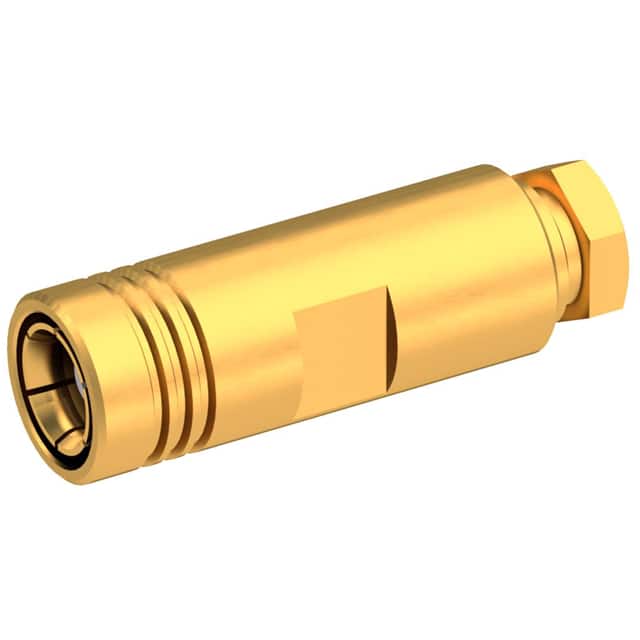

R114005000 Radiall R114005000 is an SMB straight plug coaxial connector with a female socket, 50 Ohm impedance, and 4 GHz max frequency. It features snap-on fastening, gold housing, solder contact termination, and clamp shield termination for RG-174, 179, 187, 188, 316 cables.
Mfr Part #:

R114005000

Available from 1 distributors
Mfr Name: Radiall
Radiall
Radiall R114005000 is an SMB straight plug coaxial connector with a female socket, 50 Ohm impedance, and 4 GHz max frequency. It features snap-on fastening, gold housing, solder contact termination, and clamp shield termination for RG-174, 179, 187, 188, 316 cables.
✓ Total Stock: 6 pcs
$ Price Range: $12.17 - $18.87

R114005000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R114005000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Group
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Mounting Type
Number of Ports
SVHC Present
Shield Termination
View Similar Products (0)

R114005000 Description

Short technical summary and product information.

The Radiall R114005000 is an SMB straight plug coaxial connector assembly designed for RG-174, RG-179, RG-187, RG-188, and RG-316 cables.



This connector features a female socket center contact and snap-on fastening for quick, reliable mating. The gold-plated housing provides excellent conductivity and corrosion resistance.



Electrical performance is rated at 50 Ohm characteristic impedance with a maximum operating frequency of 4 GHz. Contact termination is solder type, while shield termination uses a clamp mechanism for secure cable attachment.



The connector is free-hanging (in-line) with a single port, making it suitable for cable-to-cable or cable-to-jack connections in RF systems.

R114005000 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Canonical Name: Radiall R114005000 SMB Straight Plug, Female Socket, 50 Ohm, 4 GHz, Solder/Clamp, Free Hanging
Subcategory: SMB Connector

R114005000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

R114005000 Estimated Pricing

Qty Low High
1+ $18.87 $18.87
10+ $16.04 $16.04
25+ $15.03 $15.03
50+ $14.32 $14.32
100+ $13.63 $13.63
300+ $12.62 $12.62
500+ $12.17 $12.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

R114005000 Features

  • SMB straight plug with female socket.
  • 50 Ohm impedance, 4 GHz max frequency.
  • Snap-on fastening for quick mating.
  • Gold-plated housing for corrosion resistance.
  • Solder contact, clamp shield termination.

R114005000 Applications

  • RF interconnects for RG-174 coaxial cable.
  • Test equipment and instrumentation cabling.
  • Telecommunications and wireless infrastructure.
  • Cable assembly in constrained-space environments.

R114005000 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the impedance of the Radiall R114005000?

50 Ohm.

What is the maximum frequency of the R114005000?

4 GHz.

What cables are compatible with this connector?

RG-174, RG-179, RG-187, RG-188, and RG-316.

What fastening type does the R114005000 use?

Snap-On.

What is the mounting type of this connector?

Free Hanging (In-Line).
