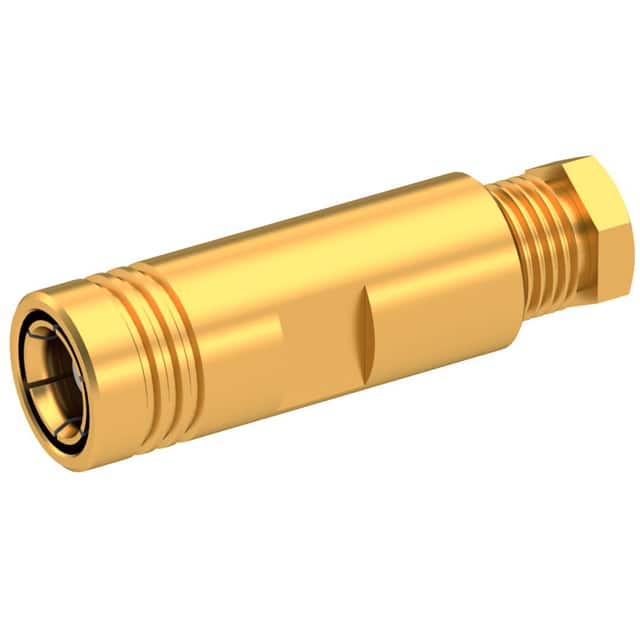

R114003000 Radiall R114003000 is an SMB straight plug coaxial connector with a female socket. It features 50 Ohm impedance, 4 GHz frequency, snap-on fastening, and clamp shield termination for RG-178/196 cables.
Mfr Part #:

R114003000

Available from 1 distributors
Mfr Name: Radiall
Radiall
Radiall R114003000 is an SMB straight plug coaxial connector with a female socket. It features 50 Ohm impedance, 4 GHz frequency, snap-on fastening, and clamp shield termination for RG-178/196 cables.
✓ Total Stock: 6 pcs
$ Price Range: $16.06

R114003000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R114003000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Group
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Mounting Type
Number of Ports
Shield Termination
View Similar Products (0)

R114003000 Description

Short technical summary and product information.

The Radiall R114003000 is an SMB straight plug coaxial connector designed for use with RG-178 and RG-196 cables. It features a female socket center contact and a snap-on coupling mechanism, providing a secure and quick connection.



Electrically, the connector is rated for 50 Ohm impedance and operates up to 4 GHz, making it suitable for a variety of RF applications. The snap-on fastening type ensures reliable mating, while the clamp shield termination and solder contact termination facilitate easy cable assembly.



Mechanically, the connector is free hanging (in-line), with a beryllium copper center contact and a gold-plated housing. It is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited).

R114003000 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Series: SMB
Canonical Name: SMB Straight Plug, Female Socket, Clamp Termination, 50 Ohm, 4 GHz Coaxial Connector Assembly
Subcategory: SMB Connector

R114003000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R114003000 Estimated Pricing

Qty Low High
100+ $16.06 $16.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

R114003000 Features

  • SMB straight plug connector with female socket.
  • 50 Ohm impedance rated for frequencies up to 4 GHz.
  • Snap-on fastening for quick and secure connections.
  • Clamp shield termination for easy cable assembly.
  • Beryllium copper center contact for reliable performance.

R114003000 Applications

  • Used in RF coaxial cable assemblies for RG-178 and RG-196 cables.
  • Suitable for telecommunications and networking equipment.
  • Ideal for test and measurement applications requiring a 50 Ohm interface.

R114003000 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the connector style of the Radiall R114003000?

The connector style is SMB.

What is the impedance of the R114003000?

50 Ohm.

What is the maximum operating frequency?

4 GHz.

What type of cable does this connector support?

RG-178 and RG-196.

What is the mounting type?

Free Hanging (In-Line).

What is the fastening type?

Snap-On.

R114003000 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
R114003000W
R114003000W
Radiall
SMB / STRAIGHT PLUG CLAMP TYPE C
View Part
