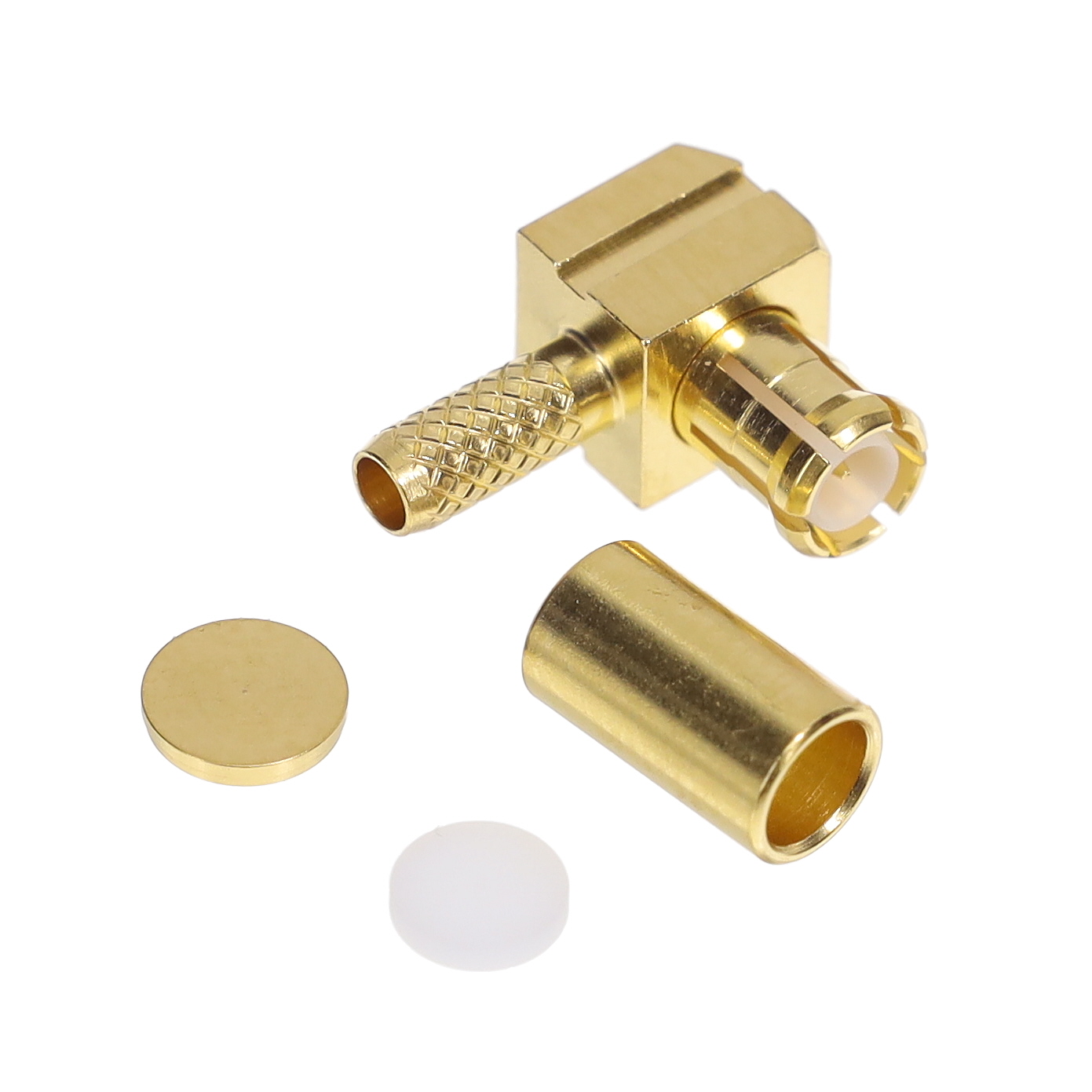

R113182000W The R113182000W is an MCX right angle plug connector from Radiall with a male pin contact and crimp termination, designed for 50 Ohm systems up to 6 GHz.
Mfr Part #:

R113182000W

Available from 1 distributors
Mfr Name: Radiall
Radiall
The R113182000W is an MCX right angle plug connector from Radiall with a male pin contact and crimp termination, designed for 50 Ohm systems up to 6 GHz.
✓ Total Stock: 5 pcs
$ Price Range: $7.68 - $12.50

R113182000W Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R113182000W Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Group
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Mounting Type
Number of Ports
Shield Termination
View Similar Products (0)

R113182000W Description

Short technical summary and product information.

The R113182000W is an MCX right angle plug connector manufactured by Radiall. It features a male pin contact and uses a crimp termination method for both the center contact and shield. The connector is designed for free hanging (in-line) mounting and has a snap-on fastening type for quick and secure mating.



This connector is specified for 50 Ohm impedance systems and supports frequencies up to 6 GHz. It is compatible with cable groups RG-174, RG-188, and RG-316. The center contact is made of beryllium copper, and the housing has a gold color finish.



The right angle design allows for space-saving installations where a straight connector would not fit. The snap-on coupling provides reliable retention while allowing for easy disconnection when needed.

R113182000W Quick Information

Product Type: Coaxial Connector (RF) Assembly
Canonical Name: MCX Right Angle Plug Crimp Connector, 50 Ohm
Subcategory: MCX Connector

R113182000W Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

R113182000W Estimated Pricing

Qty Low High
1+ $12.50 $12.50
10+ $10.63 $10.63
25+ $9.96 $9.96
50+ $9.48 $9.48
100+ $9.03 $9.03
250+ $8.47 $8.47
500+ $8.06 $8.06
1,000+ $7.68 $7.68

Estimated market price range - modelled values for guidance only, not live distributor offers.

R113182000W Features

  • MCX right angle plug connector.
  • 50 Ohm impedance, 6 GHz max frequency.
  • Crimp termination for contact and shield.
  • Snap-on fastening for secure mating.
  • Compatible with RG-174, 188, 316 cables.

R113182000W Applications

  • Used in RF and wireless communication systems.
  • Suitable for test and measurement equipment.
  • Ideal for antenna and GPS module connections.
  • Used in telecommunications infrastructure.

R113182000W FAQs

6 frequently asked questions generated from this part’s specifications.
What is the impedance of the R113182000W connector?

The impedance is 50 Ohm.

What is the maximum frequency of this MCX connector?

The maximum frequency is 6 GHz.

What type of termination does this connector use?

It uses crimp termination for both the contact and shield.

What cable groups are compatible with the R113182000W?

It is compatible with RG-174, RG-188, and RG-316 cables.

What is the mounting style of this connector?

It is a free hanging (in-line) right angle connector.

What fastening type does the R113182000W use?

It uses a snap-on fastening type.
