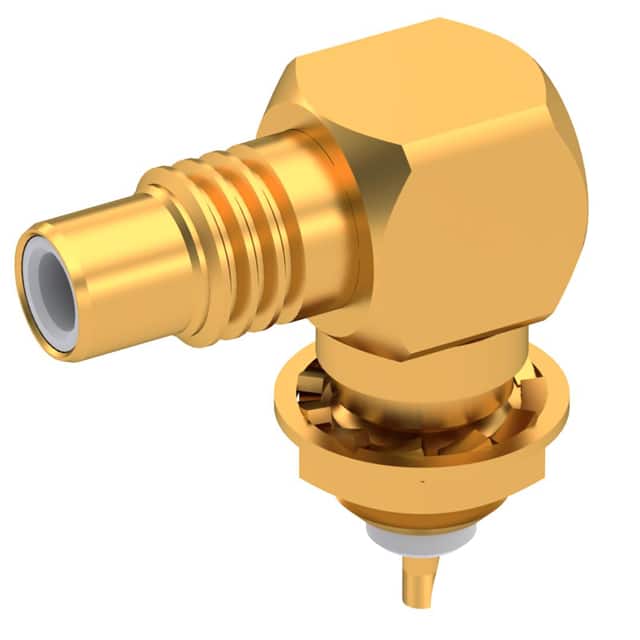

The Radiall R112670000 is a 50 Ohm SMC coaxial connector designed as a male bulkhead receptacle with a right angle configuration. It features a threaded coupling for secure fastening and a solder cup termination for the center contact, making it suitable for RF interconnect applications up to 10 GHz. The connector is RoHS3 compliant and has a wide operating temperature range from -65°C to +165°C.
Electrical performance includes a maximum VSWR of 1.05 + 0.0080 x F(GHz) and insertion loss of 0.03 x sqrt(F(GHz)) dB. The voltage rating is 335 Veff with a dielectric withstanding voltage of 1000 Veff minimum. Insulation resistance is 1000 MOhm minimum. RF leakage is specified as -(62 - F(GHz)) dB maximum.
The connector body is made of brass with gold over nickel plating, providing excellent conductivity and corrosion resistance. The center contact is also brass with gold plating, and the insulator is PTFE. Mechanical characteristics include a center contact retention of 10 N minimum at both ends and a mating life of 500 cycles minimum. The panel nut torque is 60 N.cm.
The mounting type is panel mount with a bulkhead rear side nut feature, allowing for secure installation through a panel. The right angle design facilitates space-constrained layouts. This connector is ideal for use in telecommunications, test equipment, and other RF systems requiring reliable coaxial connections.
| Qty | Low | High |
|---|---|---|
| 25+ | $68.93 | $68.93 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum voltage rating is 335 Veff.
It is a panel mount, right angle bulkhead connector with threaded coupling.
50 Ohm.
DC to 10 GHz.
-65°C to +165°C.
10 N minimum at both mating and opposite ends.
500 cycles minimum.
