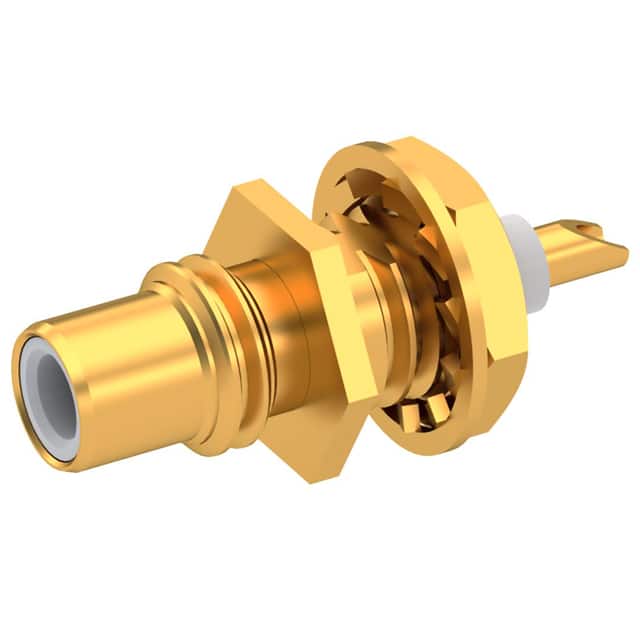

R112553000 Radiall R112553000 is an SMC bulkhead receptacle with male pin contact, 50 Ohm impedance, 10 GHz frequency range, and panel mount with solder cup termination.
Mfr Part #:

R112553000

Available from 1 distributors
Mfr Name: Radiall
Radiall
Radiall R112553000 is an SMC bulkhead receptacle with male pin contact, 50 Ohm impedance, 10 GHz frequency range, and panel mount with solder cup termination.
✓ Total Stock: 24 pcs
$ Price Range: $17.53

R112553000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
24 pcs
On Request
24 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R112553000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Body Material
Center Contact Material
Center Contact Plating
Connector Style
Connector Type
Contact Termination
Dielectric Withstanding Voltage
Fastening Type
Features
Frequency
Housing Color
Impedance
Insertion Loss
Insulation Resistance
Insulator Material
Mounting Feature
Mounting Type
Number of Ports
Operating Temperature
Shield Termination
VSWR
Voltage Rating
Weight
View Similar Products (0)

R112553000 Description

Short technical summary and product information.

The Radiall R112553000 is an SMC series bulkhead receptacle designed for front panel mounting with a rear side nut. It features a male pin contact with solder cup termination, making it suitable for coaxial cable assembly. The connector offers 50 Ohm impedance and operates up to 10 GHz, with a maximum VSWR of 1.05 + 0.1000 x F(GHz) and insertion loss of 0.03 x sqrt(F(GHz)) dB. It is rated for 335 Veff maximum voltage and has a dielectric withstanding voltage of 1000 Veff. The body is brass with gold plating over nickel, and the center contact is brass with thicker gold plating. The insulator is PTFE. The connector is designed for panel mounting with a bulkhead feedthrough and includes extended insulation. It operates over a temperature range of -65°C to +165°C and weighs 1.22 grams. It is suitable for applications requiring reliable RF connections in harsh environments.

R112553000 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Series: SMC
Canonical Name: Radiall R112553000 SMC Bulkhead Receptacle, Male Pin, 50 Ohm, 10 GHz
Subcategory: Receptacle, Male Pin

R112553000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

R112553000 Estimated Pricing

Qty Low High
25+ $17.53 $17.53

Estimated market price range - modelled values for guidance only, not live distributor offers.

R112553000 Features

  • SMC series 50 Ohm coaxial receptacle.
  • Male pin contact with solder cup termination.
  • Panel mount with bulkhead rear side nut.
  • Frequency range up to 10 GHz.
  • Gold plated brass body and center contact.

R112553000 Applications

  • Used in RF communication systems.
  • Suitable for test and measurement equipment.
  • Ideal for aerospace and defense applications.
  • Common in antenna and GPS modules.

R112553000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of the R112553000 connector?

50 Ohm.

What is the maximum operating frequency?

10 GHz.

What is the mounting type?

Panel mount with bulkhead rear side nut.

What is the maximum voltage rating?

335 Veff.

What is the operating temperature range?

-65°C to +165°C.

What is the contact termination method?

Solder cup.

What is the VSWR specification?

1.05 + 0.1000 x F(GHz) maximum.
