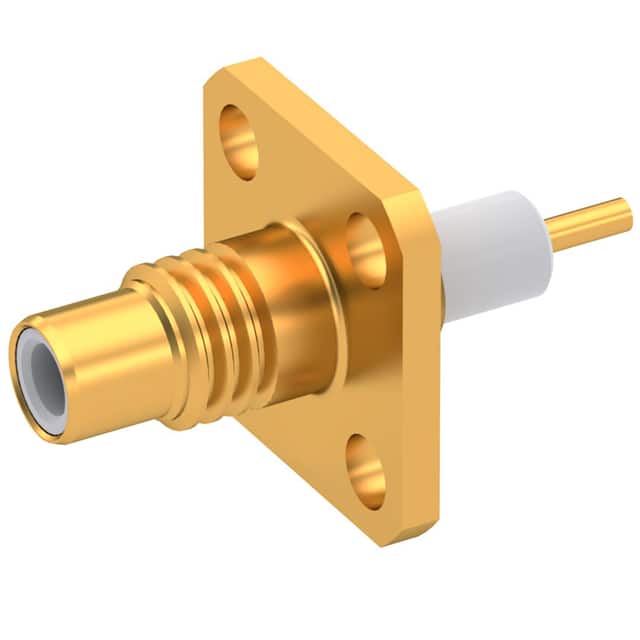

The Radiall R112413000 is an SMC series adjustable square flange plug receptacle with a female socket contact. It is designed for RF applications requiring a 50 Ohm impedance and operates from DC to 10 GHz. Key electrical specifications include a maximum VSWR of 1.05 + 0.008 x F(GHz), a maximum insertion loss of 0.03 x sqrt(F(GHz)) dB, and RF leakage of -(62 - F(GHz)) dB. The voltage rating is 335 Veff maximum, with a dielectric withstanding voltage of 1000 Veff minimum and insulation resistance of 1000 MOhm minimum.
The connector is mechanically designed for panel mounting with a flange feature and through hole solder termination for both the center contact and shield. The housing is gold plated brass, and the center contact is brass with gold plating. The connector is threaded for secure fastening and has a minimum mating life of 500 cycles. It operates over a temperature range of -65 to +165 °C.
This connector is suitable for use in telecommunications, test equipment, and other RF systems requiring a reliable SMC interface. The adjustable square flange design allows for precise alignment during installation.
| Qty | Low | High |
|---|---|---|
| 100+ | $30.17 | $30.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum voltage rating is 335 Veff.
It supports panel mounting with a flange feature and through hole solder termination.
The impedance is 50 Ohm.
The frequency range is DC to 10 GHz.
The operating temperature range is -65 to +165 °C.
The minimum mating life is 500 cycles.
RoHS3 compliant, but this status is unverified and low confidence.
