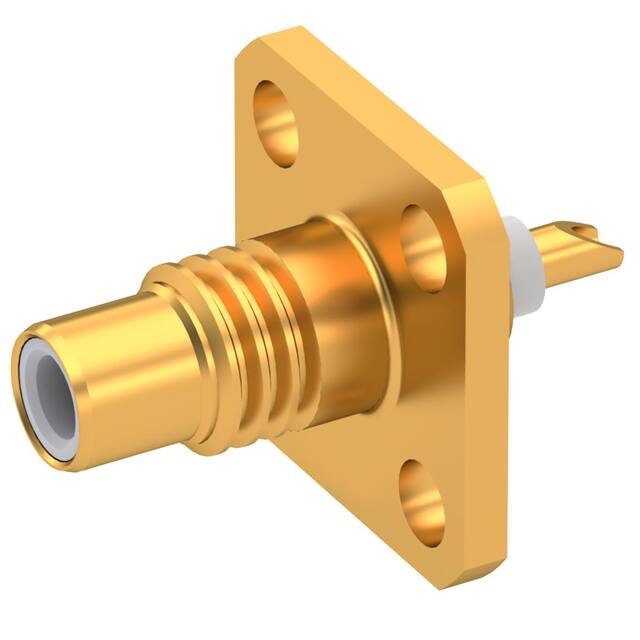

The Radiall R112403000 is an SMC series square flange jack receptacle designed for coaxial RF applications. This connector features a male pin center contact made of brass with gold plating, providing reliable electrical performance up to 10 GHz with 50 Ohm impedance.
Electrical characteristics include a maximum VSWR of 1.05 + 0.008 x F(GHz), insertion loss of 0.03*√F(GHz) dB, and RF leakage of -(62 - F(GHz)) dB. The voltage rating is 335 Veff maximum with a dielectric withstanding voltage of 1000 Veff minimum and insulation resistance of 1000 MΩ minimum.
This connector supports panel mounting with a flange feature and threaded fastening. The center contact termination is solder cup while the shield termination is solder. It offers a mating life of 500 cycles minimum and operates over a temperature range of -65°C to +165°C.
| Qty | Low | High |
|---|---|---|
| 25+ | $35.79 | $35.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohm.
10 GHz.
Panel mount with flange.
335 Veff maximum.
-65°C to +165°C.
Brass with gold plating.
