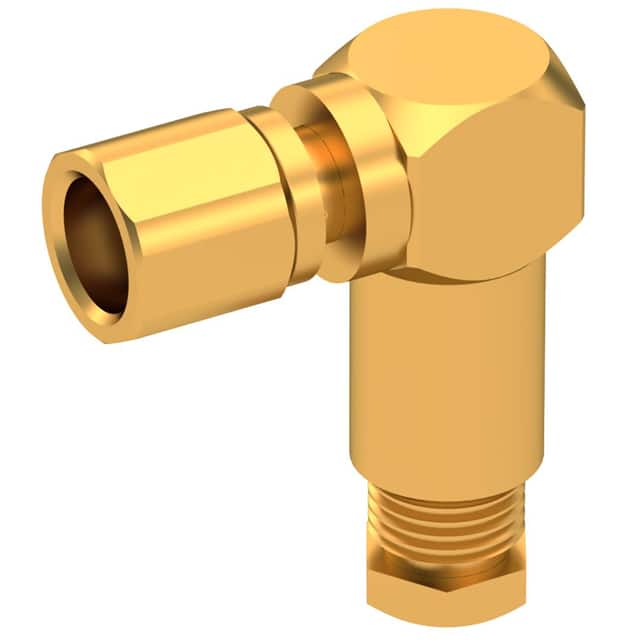

R112165000 Radiall R112165000 is a 50 Ohm SMC coaxial connector with a female socket, right angle body, and solder termination. It is designed for use with RG-174, RG-179, and RG-316 cables.
Mfr Part #:

R112165000

Available from 1 distributors
Mfr Name: Radiall
Radiall
Radiall R112165000 is a 50 Ohm SMC coaxial connector with a female socket, right angle body, and solder termination. It is designed for use with RG-174, RG-179, and RG-316 cables.
✓ Total Stock: 2 pcs
$ Price Range: $27.27 - $40.25

R112165000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R112165000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Group
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Mounting Type
Number of Ports
Shield Termination
Termination Style
View Similar Products (0)

R112165000 Description

Short technical summary and product information.

The Radiall R112165000 is a threaded SMC coaxial connector assembly featuring a plug with a female socket contact. This right-angle, free-hanging (in-line) connector is designed for 50 Ohm systems and supports frequencies up to 10 GHz.



It features a gold-plated housing and a beryllium copper center contact. The contact termination is solder, and the shield is terminated using a clamp, making it suitable for use with RG-174, RG-179, and RG-316 coaxial cables.



This connector is ideal for RF applications requiring a compact, threaded interface. The right-angle design helps save space in tight layouts while maintaining signal integrity in 50 Ohm transmission lines.

R112165000 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Canonical Name: Radiall R112165000 SMC Coaxial Connector, Plug, Female Socket, 50 Ohm, Right Angle, Solder
Subcategory: SMC Connector

R112165000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Non-Compliant

R112165000 Estimated Pricing

Qty Low High
1+ $40.25 $40.25
10+ $34.21 $34.21
25+ $32.07 $32.07
50+ $30.54 $30.54
100+ $29.09 $29.09
250+ $27.27 $27.27

Estimated market price range - modelled values for guidance only, not live distributor offers.

R112165000 Features

  • 50 Ohm SMC right-angle plug connector.
  • Female socket with solder contact termination.
  • Threaded coupling for secure RF connection.
  • Supports frequencies up to 10 GHz.
  • Designed for RG-174, RG-179, RG-316 cables.

R112165000 Applications

  • Ideal for 50 Ohm RF cable assemblies.
  • Used in telecommunications and test equipment.
  • Suitable for compact, right-angle connections.
  • Common in wireless and antenna systems.

R112165000 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the impedance of the R112165000 connector?

The impedance is 50 Ohms.

What is the maximum frequency rating for this connector?

The maximum frequency is 10 GHz.

What type of cable is this connector compatible with?

It is compatible with RG-174, RG-179, and RG-316 coaxial cables.

What is the mounting style of the R112165000?

It is a free hanging (in-line), right angle connector.

What is the contact termination method?

The contact termination is solder.

What is the fastening type for this connector?

The fastening type is threaded.
