| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Insertion Loss | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Ports | |
| Operating Temperature | |
| Shield Termination | |
| VSWR | |
| Voltage Rating | |
| Weight |

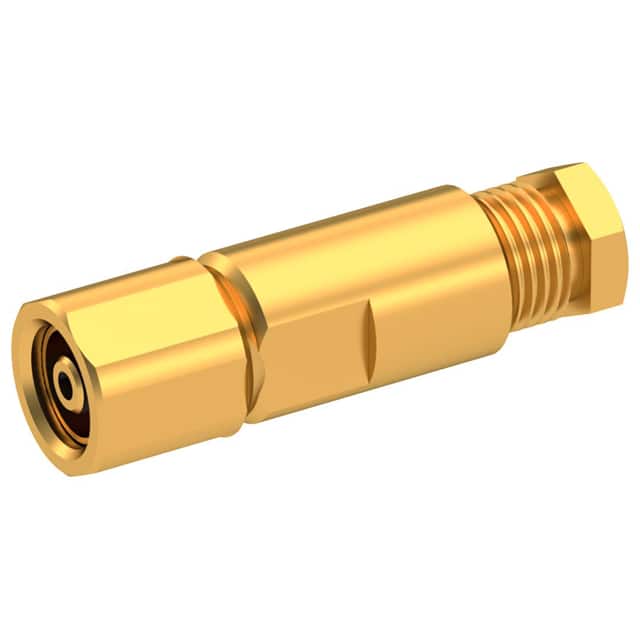

This Radiall R112005000 is a straight plug RF connector assembly belonging to the SMC series. It is designed for coaxial applications with a standard impedance of 50 Ohms and a frequency range of 0-10 GHz.
The connector features a clamp-type shield termination and a solder contact termination. The center contact is made of Beryllium Copper, and the body is brass with gold plating. The insulator is PTFE.
With a mating life of 500 cycles minimum, this connector is suitable for applications requiring reliable RF connections. It operates within a wide temperature range of -65 to +165 °C.
The assembly is designed for inline mounting and is compatible with cable groups such as RG-179, RG-187, RG-188, and RG-316. The connector has a voltage rating of 335 Veff and an insulation resistance of 1000 MΩ minimum.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance of the Radiall R112005000 connector is 50 Ohm.
The maximum operating frequency for this RF connector assembly is 10 GHz.
The R112005000 uses clamp shield termination.
The operating temperature range for this connector is -65 to +165 °C.
The mating life of the Radiall R112005000 is a minimum of 500 cycles.
