| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Material | |
| Body Plating | |
| Cable Group | |
| Cable Retention (Min) | |
| Center Contact Material | |
| Center Contact Plating | |
| Center Contact Retention (Min) | |
| Clamp Nut Hex Size | |
| Clamp Nut Torque (Recommended) | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Dielectric Withstanding Voltage (min) | |
| Fastening Type | |
| Frequency | |
| Gasket Material | |
| Housing Color | |
| Impedance | |
| Insertion Loss (Max) | |
| Insulation Resistance (Min) | |
| Insulator Material | |
| Mating Life (Min) | |
| Mating Torque (Recommended) | |
| Mounting Type | |
| Number of Ports | |
| Operating Temperature | |
| RF Leakage (Max) | |
| Shield Termination | |
| Standard Package Quantity | |
| VSWR (Max) | |
| Voltage Rating (max) | |
| Weight |

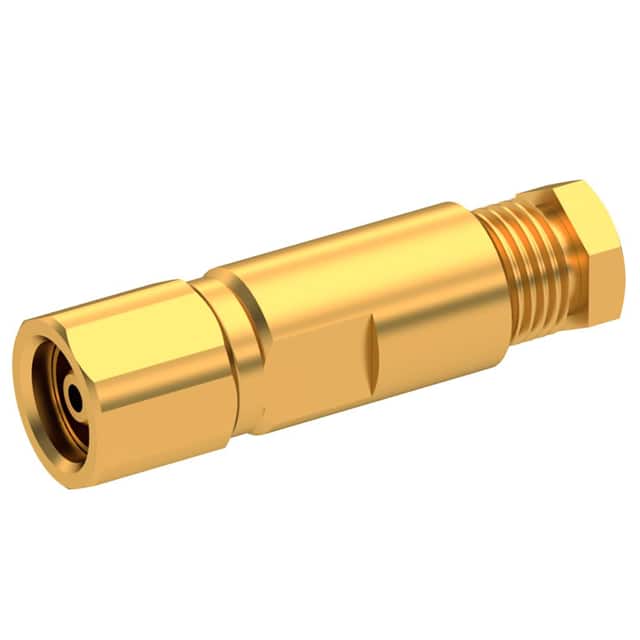

The Radiall R112003000 is an SMC straight plug clamp type coaxial connector designed for 50 Ohm systems up to 10 GHz. It features a threaded mating system and a female socket center contact with solder termination. The body is made of brass with gold over nickel plating, and the center contact is beryllium copper with gold plating. The insulator is PTFE, and the gasket is chloroprene. This connector is suitable for RG-178, RG-196, KX 21, and RG-178 LC cables, with a clamp type cable attachment. Electrical performance includes VSWR of 1.25 + 0.040 × F(GHz) max, insertion loss of 0.125 √F(GHz) dB max, RF leakage of -(62 - F(GHz)) dB max, voltage rating of 250 Veff, dielectric withstanding voltage of 750 Veff, and insulation resistance of 1000 MΩ min. Mechanically, it has center contact retention of 10 N, recommended mating torque of 30 N·cm, clamp nut torque of 70 N·cm, and a mating life of 500 cycles minimum. Weight is 2.6 g. Operating temperature range is -55°C to +100°C. The connector is RoHS compliant per manufacturer statement.
| Qty | Low | High |
|---|---|---|
| 25+ | $30.08 | $30.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohm.
10 GHz.
250 Veff maximum.
Free hanging (in-line) with threaded fastening.
RG-178, RG-196, KX 21, and RG-178 LC.
-55°C to +100°C.
