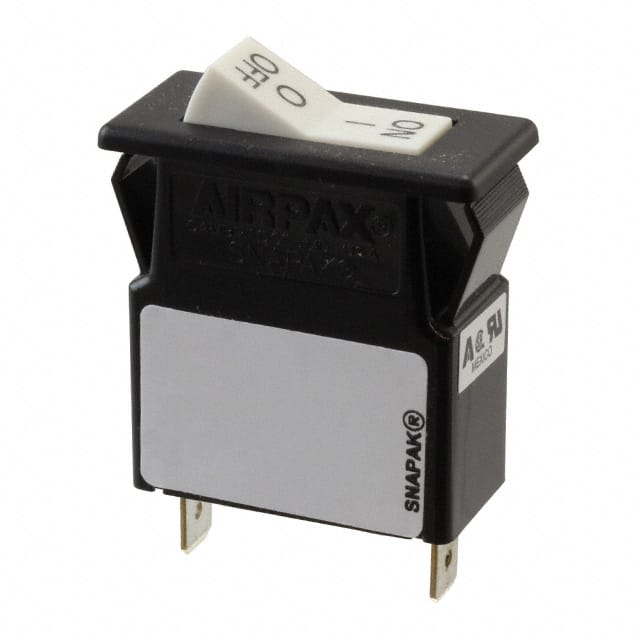

R11-1-.500A-B06CV-V The Sensata R11-1-.500A-B06CV-V is a 1-pole circuit breaker featuring a magnetic hydraulic delay and rocker actuator. It offers a 500mA current rating and panel mount capability.
Mfr Part #:

R11-1-.500A-B06CV-V

Mfr Name: Sensata
Sensata
The Sensata R11-1-.500A-B06CV-V is a 1-pole circuit breaker featuring a magnetic hydraulic delay and rocker actuator. It offers a 500mA current rating and panel mount capability.
Stock on Request

R11-1-.500A-B06CV-V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
View Similar Products (0)

R11-1-.500A-B06CV-V Description

Short technical summary and product information.

This Sensata R11-1-.500A-B06CV-V circuit breaker is designed for reliable circuit protection. It operates with a magnetic hydraulic delay mechanism, providing a 500mA current rating.



The breaker features a single pole and a rocker-style actuator for easy operation. It is designed for panel mounting, making it suitable for integration into various electrical enclosures and systems.



Key specifications include a 500mA current rating and a 1-pole configuration. The magnetic hydraulic delay ensures appropriate tripping characteristics for different load conditions. The panel mount design facilitates straightforward installation.



This component is part of the Sensata SNAPAK® series, known for its circuit protection solutions. Its specifications make it suitable for applications requiring precise overcurrent protection.

R11-1-.500A-B06CV-V Quick Information

Product Type: Circuit Breaker
Series: SNAPAK®
Canonical Name: Sensata R11-1-.500A-B06CV-V Magnetic Hydraulic Delay Circuit Breaker
Subcategory: Magnetic (Hydraulic Delay)

R11-1-.500A-B06CV-V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R11-1-.500A-B06CV-V Features

  • 500mA current rating for protection.
  • Magnetic hydraulic delay mechanism.
  • Single pole configuration.
  • Rocker actuator for operation.
  • Panel mount for easy installation.

R11-1-.500A-B06CV-V Applications

  • Overcurrent protection in industrial control panels.
  • Protection for power distribution circuits.
  • Suitable for equipment with high inrush currents.
  • Panel-mounted circuit protection in commercial systems.

R11-1-.500A-B06CV-V FAQs

4 frequently asked questions generated from this part’s specifications.
What is the current rating of the Sensata R11-1-.500A-B06CV-V circuit breaker?

The current rating is 500mA.

How many poles does the R11-1-.500A-B06CV-V circuit breaker have?

It has 1 pole.

What type of breaker is the R11-1-.500A-B06CV-V?

It is a Magnetic (Hydraulic Delay) breaker.

What is the mounting type for this circuit breaker?

The mounting type is Panel Mount.

R11-1-.500A-B06CV-V Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
MA1-B-24-250-1-A26-B-D
MA1-B-24-250-1-A26-B-D
Littelfuse Inc.
The Littelfuse Inc. MA1-B-24-250-1-A26-B-D is a 1-pole magnetic hydraulic delay circuit breaker. It features a panel mount design and a rocker actuator.
View Part
MA1-B-34-250-1-A12-A-C
MA1-B-34-250-1-A12-A-C
Littelfuse Inc.
The Littelfuse Inc. MA1-B-34-250-1-A12-A-C is a magnetic hydraulic delay circuit breaker. It features a 500mA current rating and a 250V voltage rating.
View Part
MA1-B-34-250-1-A27-B-C
MA1-B-34-250-1-A27-B-C
Littelfuse Inc.
The Littelfuse Inc. MA1-B-34-250-1-A27-B-C is a 1-pole circuit breaker designed for panel mounting. It features a magnetic hydraulic delay mechanism.
View Part
MA1-B-94-250-1-A16-B-C
MA1-B-94-250-1-A16-B-C
Littelfuse Inc.
This Littelfuse MA1-B-94-250-1-A16-B-C is a single-pole magnetic hydraulic delay circuit breaker. It is rated for 500mA at 250V and features a rocker actuator for panel mount installation.
View Part
