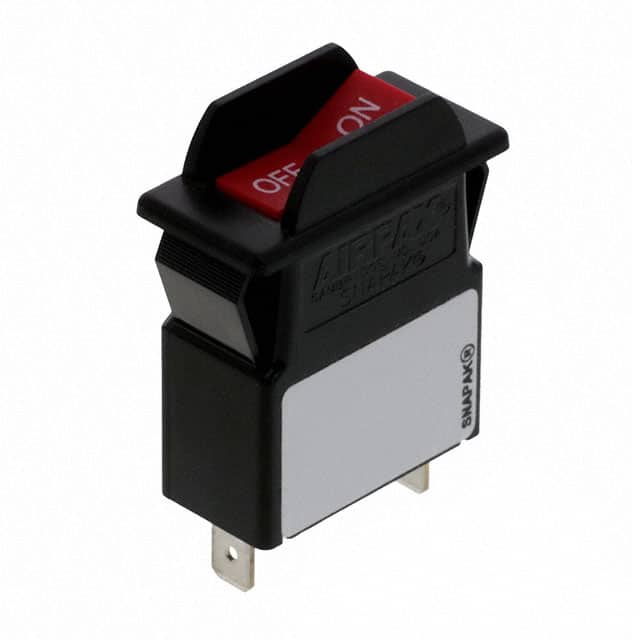

R11-1-15.0A-34828-1 Sensata R11-1-15.0A-34828-1 is a 1-pole magnetic hydraulic circuit breaker rated 15A at 125V. It features a rocker actuator and panel mount design.
Mfr Part #:

R11-1-15.0A-34828-1

Mfr Name: Sensata
Sensata
Sensata R11-1-15.0A-34828-1 is a 1-pole magnetic hydraulic circuit breaker rated 15A at 125V. It features a rocker actuator and panel mount design.
Stock on Request

R11-1-15.0A-34828-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
Voltage Rating
View Similar Products (0)

R11-1-15.0A-34828-1 Description

Short technical summary and product information.

The Sensata R11-1-15.0A-34828-1 is a single-pole magnetic hydraulic circuit breaker designed for overcurrent protection. It is rated for 15A continuous current at 125V AC/DC.



The breaker utilizes a magnetic hydraulic (hydraulic-magnetic) trip mechanism, providing precise and reliable overcurrent protection with a time delay characteristic. The rocker actuator allows for manual on/off control.



This circuit breaker is panel mountable and carries UL1077 supplementary protection approval. It is suitable for use in power distribution, industrial control, and equipment protection applications.

R11-1-15.0A-34828-1 Quick Information

Product Type: Circuit Breaker
Series: R11
Canonical Name: Sensata R11 Series 1-Pole 15A 125V Magnetic Hydraulic Circuit Breaker with Rocker Actuator
Subcategory: Magnetic Hydraulic Circuit Breaker

R11-1-15.0A-34828-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

R11-1-15.0A-34828-1 Features

  • Rated for 15A at 125V operation.
  • Single-pole magnetic hydraulic design.
  • Rocker actuator for manual control.
  • Panel mount installation.
  • UL1077 supplementary protection approved.

R11-1-15.0A-34828-1 Applications

  • Overcurrent protection in power supplies.
  • Industrial control panel protection.
  • Equipment branch circuit protection.

R11-1-15.0A-34828-1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the R11-1-15.0A-34828-1?

125V.

What is the current rating of the R11-1-15.0A-34828-1?

15A.

What type of breaker is the R11-1-15.0A-34828-1?

Magnetic (Hydraulic Delay).

How many poles does the R11-1-15.0A-34828-1 have?

1 pole.

What actuator type does the R11-1-15.0A-34828-1 use?

Rocker.

What approvals does the R11-1-15.0A-34828-1 have?

UL1077.

What is the mounting type of the R11-1-15.0A-34828-1?

Panel mount.
