| Category | |
| Manufacturer Name | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Termination Style | |
| Weight |

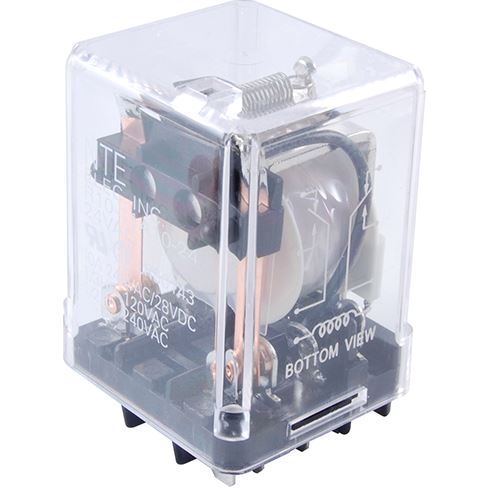

This NTE Electronics R10-14A10-120 is a general purpose relay designed for various applications. It features a 3PDT (3 Form C) contact arrangement, capable of handling a current rating of 10A. The relay operates with a 120VAC coil voltage.
Electrical specifications include an operate time of 24ms and a release time of 26ms. The contact material is silver cadmium oxide. Insulation characteristics include a dielectric strength of 2000 VRMS from contact to coil and contact to frame, 500 VRMS across open contacts, and 2000 VRMS pole to pole.
Environmental specifications indicate an operating temperature range of -30°C to 50°C. The relay has a weight of approximately 88 grams. Termination is via plug-in or quick connect terminals measuring 0.187" (4.7mm).
Compliance information indicates RoHS3 compliance, MSL 1 Unlimited, and REACH Unaffected status. This relay is suitable for applications requiring reliable switching with its robust specifications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The R10-14A10-120 relay has a 3PDT (3 Form C) contact form.
The R10-14A10-120 relay has a maximum current rating of 10A.
The coil voltage for the R10-14A10-120 relay is 120VAC.
The operating temperature range for the R10-14A10-120 relay is -30°C to 50°C.
The operate time is 24ms and the release time is 26ms.
The R10-14A10-120 relay uses plug-in and quick connect terminals measuring 0.187" (4.7mm).
