| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Lead Spacing | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Storage Temperature | |
| Termination Style | |
| Weight |

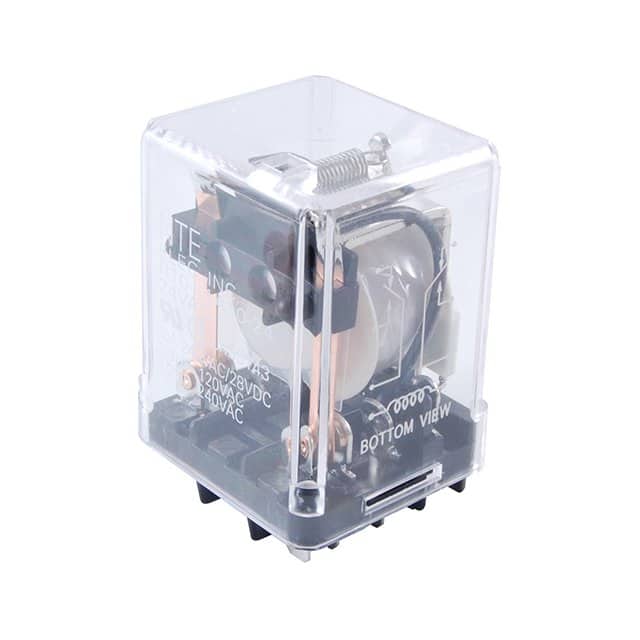

This NTE Electronics R10-11A10-120 is a general purpose relay designed for AC operation with a 120VAC coil voltage. It features a Double Pole Double Throw (DPDT) contact arrangement and a maximum contact current rating of 10A.
The relay has an operate time of 20ms and a release time of 28ms. The contact material is silver cadmium oxide. Terminals are 0.187" (4.7mm) and suitable for plug-in, solder, and quick connect applications.
Environmental specifications include an operating temperature range of -30°C to 50°C for AC operation and -30°C to 65°C for DC operation. Storage temperature can range from -30°C to 100°C. The relay weighs approximately 88 grams.
Insulation characteristics include a dielectric strength of 2000 VRMS across contact to coil and contact to frame, 500 VRMS across open contacts, and 2000 VRMS pole to pole.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The R10-11A10-120 relay has a DPDT (2 Form C) contact arrangement.
The R10-11A10-120 relay has a maximum contact current rating of 10A.
The coil voltage for the R10-11A10-120 relay is 120VAC.
The operating temperature range for the R10-11A10-120 relay is -30°C to 50°C for AC operation and -30°C to 65°C for DC operation.
The R10-11A10-120 relay has an operate time of 20ms and a release time of 28ms.
The R10-11A10-120 relay features 0.187" (4.7mm) terminals suitable for plug-in, solder, and quick connect applications.
