| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
675 pcs
|
675 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Certification | |
| Current | |
| Efficiency | |
| Height | |
| Isolation Voltage | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Line Regulation | |
| Load Regulation | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Accuracy | |
| Output Voltage | |
| Power (Watts) | |
| Termination Style | |
| Type | |
| Voltage | |
| Width | |
| dV/dt Rating |

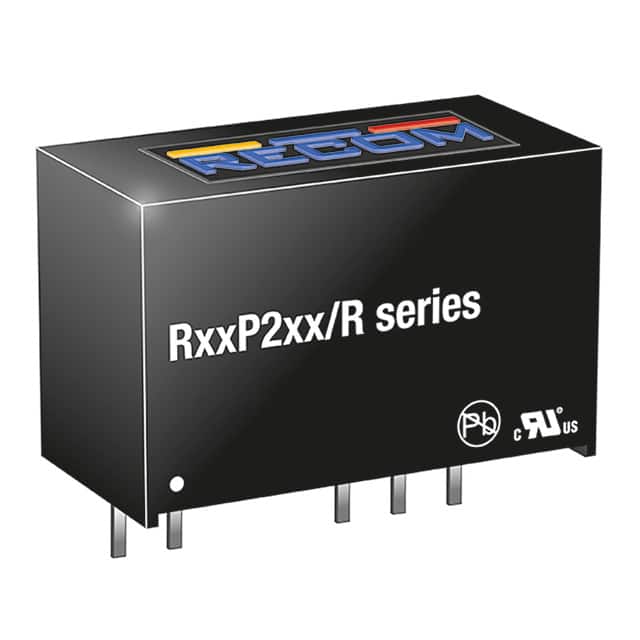

The R05P205S/R6.4 is a 2W isolated DC/DC converter from Recom Power's RxxP2xx/R series. It provides a single regulated output of 5V at 400mA with a typical efficiency of 84%. The converter features reinforced isolation rated at 6.4kVDC for 1 second, with a common-mode dv/dt rating of 65kV/µs. It is certified to IEC/EN/UL/CSA 60950-1, IEC/EN 60601-1 (medical), and IEC/EN 61010-1 (lab equipment) standards.
The module operates over an ambient temperature range of -40°C to 85°C and is designed for through-hole mounting in a 7-SIP package with 4 PC pin leads. Dimensions are 19.7mm x 9.8mm x 12.5mm. The converter is suitable for applications requiring high isolation, such as medical equipment, industrial controls, and test instrumentation. It is RoHS3 and REACH compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $24.47 | $24.47 |
| 5+ | $23.56 | $23.56 |
| 10+ | $23.18 | $23.18 |
| 25+ | $22.68 | $22.68 |
| 50+ | $22.31 | $22.31 |
| 100+ | $21.95 | $21.95 |
| 250+ | $21.48 | $21.48 |
| 500+ | $18.63 | $18.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5V DC.
7-SIP Module, 4 Leads (through-hole).
-40°C to 85°C.
Yes, RoHS3 compliant per datasheet.
6.4 kVDC reinforced isolation, 1 second rating.
84%.
400 mA.
