| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Common Mode Transient Immunity | |
| Current | |
| Efficiency | |
| Features | |
| Halogen Free | |
| Height | |
| Industrial Grade | |
| Input Voltage Range | |
| Isolation Voltage | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Line Regulation | |
| Load Regulation | |
| Maximum Capacitive Load | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Ripple & Noise | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

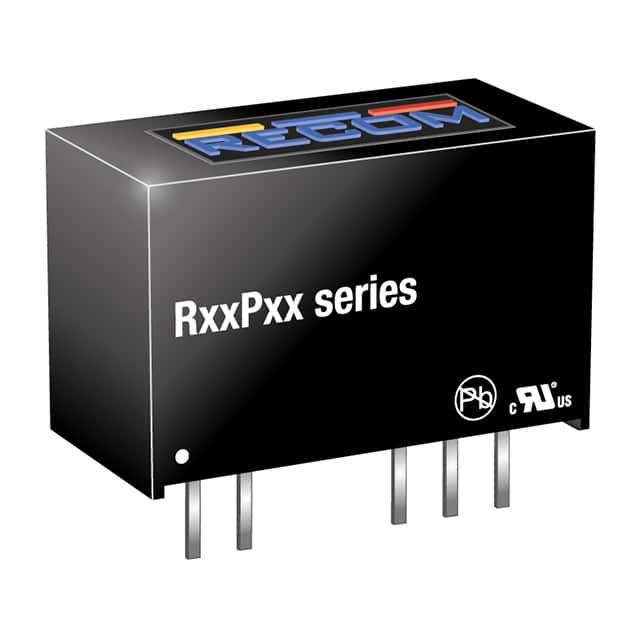

The Recom Power R05P05S is a 1W isolated DC/DC converter module designed for applications requiring high isolation. It accepts a nominal 5V input (4.5V to 5.5V range) and provides a single 5V output at up to 200mA. The converter features 6.4kVDC isolation rated for 1 second, making it suitable for IGBT gate drive and medical applications. With a typical efficiency of 75% and a wide operating temperature range of -40°C to 90°C, it performs reliably in harsh environments. The module is housed in a 7-SIP through-hole package measuring 19.7mm x 9.8mm x 12.5mm. It includes short circuit protection and is certified to UL/CSA60950-1 and EN60950-1. The R05P05S is RoHS3 and REACH compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $16.21 | $16.21 |
| 5+ | $15.61 | $15.61 |
| 10+ | $15.36 | $15.36 |
| 25+ | $15.03 | $15.03 |
| 50+ | $14.78 | $14.78 |
| 100+ | $14.54 | $14.54 |
| 250+ | $14.23 | $14.23 |
| 500+ | $14.00 | $14.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 4.5V to 5.5V (nominal 5V).
It comes in a 7-SIP Module, 4 Leads through-hole package.
-40°C to 90°C.
Yes, it is RoHS3 compliant and REACH unaffected.
6.4kVDC for 1 second.
