| Category | |
| Manufacturer Name | |
| Coil Voltage | |
| Contact Form | |
| Contact Rating (Current) | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Termination Style |

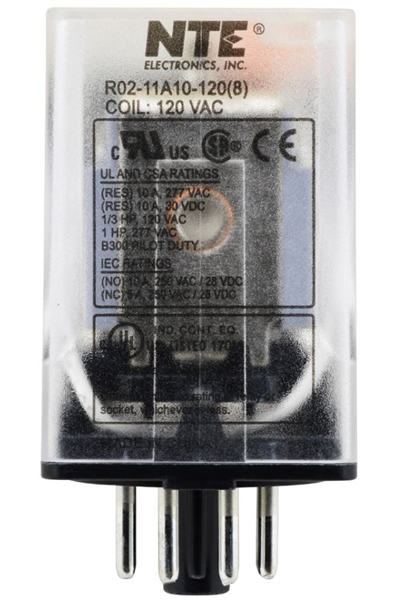

This NTE Electronics R02-11A10-120 is a general purpose relay with a Double Pole Double Throw (DPDT) contact arrangement. It is rated for a maximum contact current of 10 Amps at 120VAC or 28VDC.
The relay operates on a 120VAC coil voltage and has an operate time of 25 ms and a release time of 20 ms. The operating temperature range is from -10°C to 50°C.
Designed for plug-in mounting with an 8-pin octal socket, this relay is suitable for various industrial and general-purpose applications. It is compliant with RoHS3 standards and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The R02-11A10-120 relay has a DPDT (2 Form C) contact arrangement.
The maximum contact current rating is 10A.
The coil voltage is 120VAC.
The operating temperature range is -10°C to 50°C.
The termination style is Plug In, 8 Pin (Octal).
