| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Voltage (Nominal) | |
| Isolation Voltage | |
| Length | |
| Max Capacitive Load | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

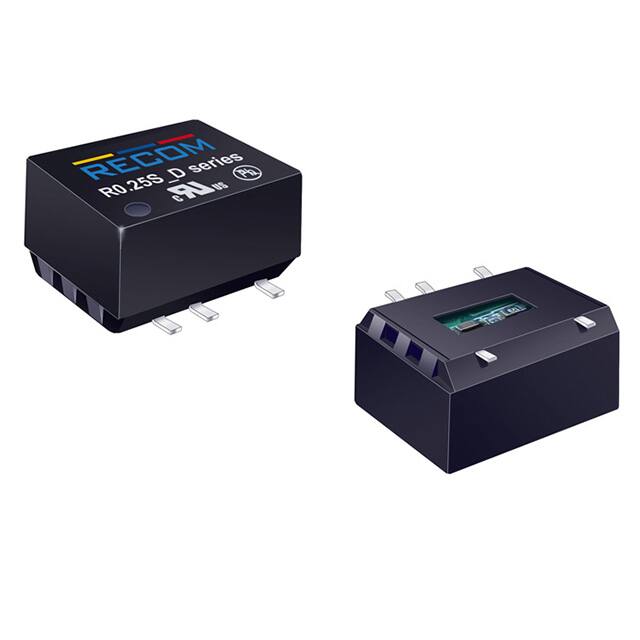

The Recom Power R0.25S-1205 is a 0.25W unregulated isolated DC/DC converter in the R0.25S series. It delivers a single 5V output at up to 50mA (250mW) from a nominal 12V input (input range 10.8V minimum). The converter offers 1kVDC galvanic isolation between input and output, suitable for general-purpose low-power isolation applications.
The R0.25S-1205 operates over a wide ambient temperature range of -40°C to +100°C without derating. Efficiency is typically 60–70% at nominal load and 25°C ambient. The device includes short-circuit protection and can drive a maximum capacitive load of 470µF.
Packaged in an 8-SMD module with 5 leads, the converter is designed for fully automated surface-mount assembly, including vapor phase soldering. It is RoHS3 compliant and certified to UL/CSA/IEC/EN 60950-1. Applications include industrial low-power isolation and voltage matching where a compact SMD converter is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.71 | $12.71 |
| 5+ | $12.24 | $12.24 |
| 10+ | $12.04 | $12.04 |
| 25+ | $11.78 | $11.78 |
| 50+ | $11.59 | $11.59 |
| 100+ | $11.40 | $11.40 |
| 250+ | $11.16 | $11.16 |
| 500+ | $10.98 | $10.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 5V and the maximum output current is 50mA.
The nominal input voltage is 12V with a minimum of 10.8V.
It operates from -40°C to +100°C without derating.
Yes, it is RoHS3 compliant (fully RoHS 10/10 conform) as verified by the datasheet.
It comes in an 8-SMD Module with 5 leads, surface-mount package.
The standard isolation voltage is 1kVDC. A 3kVDC option is available with the /H suffix.
