| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Absolute Maximum Capacitive Load (Maximum @ 1 second start up, no external components) | |
| Absolute Maximum Capacitive Load (Maximum @ <1 second start up + diode protection circuit) | |
| Absolute Maximum Input Voltage | |
| Applications | |
| Current | |
| Efficiency | |
| Efficiency (Typical @ Vin = 72 V) | |
| Features | |
| Height | |
| Industrial Grade | |
| Internal Input Filter | |
| Internal Power Dissipation | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Minimum Load | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Ripple and Noise | |
| Output Voltage | |
| Power (Watts) | |
| Quiescent Current | |
| SVHC Present | |
| Switching Frequency | |
| Type | |
| Voltage | |
| Width |

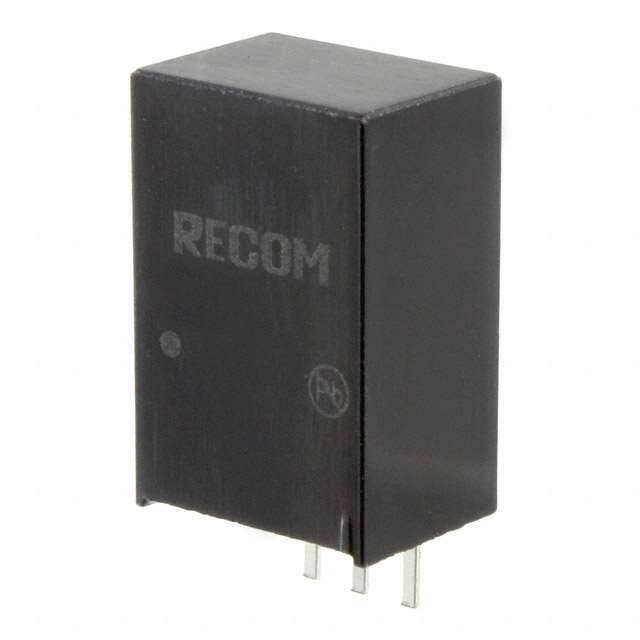

The R-78HB24-0.3 is a DC/DC converter from Recom Power designed as a linear regulator replacement. It delivers a regulated 24V output at 300mA (7.2W) with an input voltage range of 36-72V and absolute maximum of 75V. The converter achieves up to 96% efficiency at 36V input, reducing the need for heatsinks.
Key specifications include a typical quiescent current of 1mA, switching frequency of 120-800kHz, and output ripple of 20-60 mVp-p. Protection features include over-temperature protection (OTP) and short circuit protection (SCP). The device requires a minimum load of 2% (10mA recommended) and includes an internal 1µF input filter.
The converter is housed in a 3-SIP through-hole module measuring 11.5 x 8.5 x 17.5mm. It operates over a temperature range of -40°C to 85°C and is suitable for ITE (commercial) applications such as industrial 24V bus supplies, telecommunications, and battery-powered systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $20.13 | $20.13 |
| 5+ | $19.38 | $19.38 |
| 10+ | $19.07 | $19.07 |
| 25+ | $18.66 | $18.66 |
| 50+ | $18.35 | $18.35 |
| 100+ | $18.06 | $18.06 |
| 250+ | $17.67 | $17.67 |
| 500+ | $17.38 | $17.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
36-72V DC, with absolute maximum 75V.
3-SIP (Single In-line Package) module, through-hole mount.
-40°C to 85°C.
Yes, RoHS3 compliant (unverified).
300 mA.
Up to 96% at 36V input, typically 92% at 72V input.
Over-temperature protection (OTP) and short circuit protection (SCP).
