R-745.0P R-745.0P is a non-isolated PoL module from Recom Power providing a regulated 5V output at up to 4A from a 6.5V to 28V input.
Mfr Part #:

R-745.0P

Available from 1 distributors
Mfr Name: Recom Power
Recom Power
R-745.0P is a non-isolated PoL module from Recom Power providing a regulated 5V output at up to 4A from a 6.5V to 28V input.
✓ Total Stock: 3 pcs
$ Price Range: $31.49 - $35.88

R-745.0P Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

R-745.0P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Control Features
Current
Efficiency
Failure Rate
Features
Height
Industrial Grade
Lead Style
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Quiescent Current
Type
Voltage
Width
View Similar Products (0)

R-745.0P Description

Short technical summary and product information.

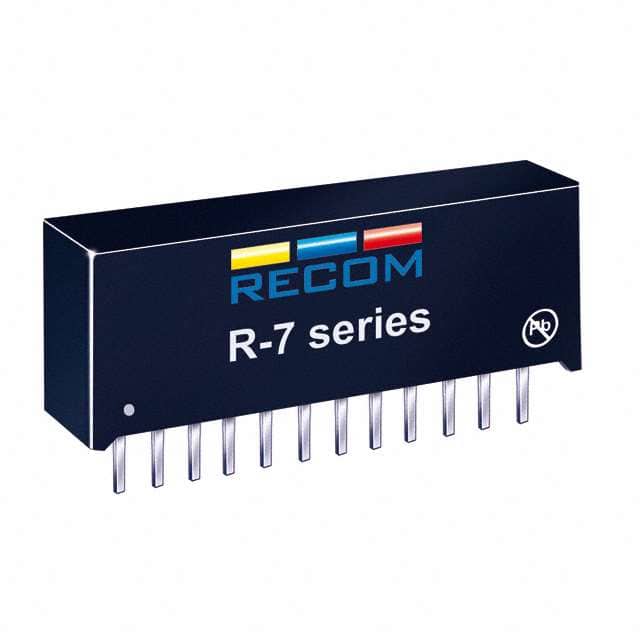

The Recom Power R-745.0P is a non-isolated point-of-load (PoL) module from the R-7xxx series. It delivers a fixed 5V output with an adjustable range of 3.0V to 5.5V, capable of supplying up to 4A of continuous current (20W). The module accepts a wide input voltage range from 6.5V to 28V.



The synchronous rectification design achieves high efficiency, typically 95% at 6.5V input and 91% at 28V input. Output ripple and noise are kept to 40mVp-p typical, 70mVp-p maximum. The switching frequency is internally set to 300kHz typical (270-330kHz range). The module includes over-current protection (OCP) and short-circuit protection (SCP), with short-circuit input current limited to below 50mA. A minimum load of 10% is required for proper regulation.



The enable control pin (active high) allows remote on/off operation. The module is housed in a 12-SIP through-hole package measuring 32.2mm x 9.1mm x 15.0mm. It operates over a temperature range of -40°C to +85°C. The device is RoHS3 and REACH compliant.

R-745.0P Quick Information

Product Type: Non-Isolated PoL Module
Series: R-7xxx
Canonical Name: R-745.0P Recom Power 4A Non-Isolated PoL Module
Subcategory: Integrated Switching Regulator

R-745.0P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Compliant
Lead Free: Yes

R-745.0P Estimated Pricing

Qty Low High
1+ $35.88 $35.88
5+ $34.55 $34.55
10+ $33.99 $33.99
25+ $33.26 $33.26
50+ $32.72 $32.72
100+ $32.18 $32.18
250+ $31.49 $31.49

Estimated market price range - modelled values for guidance only, not live distributor offers.

R-745.0P Features

  • Non-isolated point-of-load step-down regulator.
  • 4A continuous output current at 20W.
  • Wide input voltage range from 6.5V to 28V.
  • Adjustable output voltage from 3.0V to 5.5V.
  • Through-hole 12-SIP package with remote on/off control.

R-745.0P Applications

  • Suitable for ITE (commercial) equipment.
  • Ideal for distributed power architectures.
  • Used in point-of-load regulation for FPGAs, ASICs.
  • Can be applied in industrial control systems.
  • Works in battery-powered equipment with wide input range.

R-745.0P FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the R-745.0P?

6.5V to 28V.

What is the package type of the R-745.0P?

12-SIP Module (through-hole).

What is the operating temperature range?

-40°C to +85°C.

Is the R-745.0P RoHS compliant?

Yes, it is RoHS3 compliant (RoHS2+).

What is the maximum output current?

4A.

What is the output voltage of the R-745.0P?

Fixed 5V, adjustable from 3.0V to 5.5V.

What is the efficiency of the R-745.0P?

95% typical at 6.5V input, 91% typical at 28V input.
