| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Extended Life Product | |
| Features | |
| Halogen Free | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Packaging Type | |
| Pitch | |
| Standard Package Quantity | |
| Tape & Reel |

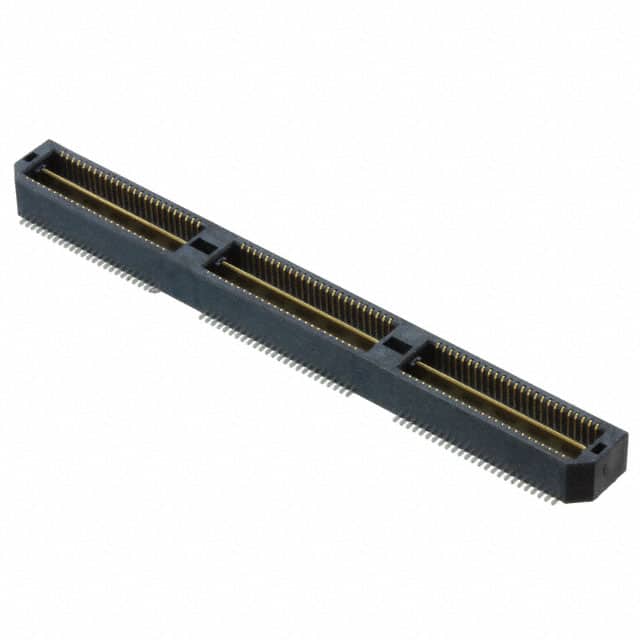

The QTS-075-02-L-D-A-K-TR is a high-speed ground plane SMT header connector from Samtec's Q Strip series. This connector offers 150 positions in a 2-row configuration with a 0.64mm (0.025") pitch, making it suitable for high-density board-to-board applications. The contacts are finished with 10µin (0.25µm) gold over tin, ensuring reliable signal integrity and corrosion resistance.
The connector features a 0.286" (7.26mm) height above board and a mated stacking height of 8mm, designed for mezzanine stacking. It includes board guide, ground bus (plane) for improved electrical performance, and pick and place features for automated assembly. The part is designated as an Extended Life Product™ (E.L.P.) by Samtec.
Surface mount technology is used for mounting, and the connector is supplied in tape and reel packaging with a standard quantity of 175 pieces per reel. The connector is rated as RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited). The QTS connector is designed for high-speed digital signals and supports protocols such as PCIe 4.0, USB 10Gbps, and Ethernet 10-25 Gbps, making it suitable for use in data centers, networking equipment, and high-performance computing applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.83 | $8.83 |
| 10+ | $7.50 | $7.50 |
| 25+ | $7.03 | $7.03 |
| 50+ | $6.70 | $6.70 |
| 100+ | $59.09 | $59.09 |
| 175+ | $10.04 | $10.04 |
| 350+ | $9.02 | $9.02 |
| 500+ | $57.91 | $57.91 |
| 525+ | $6.98 | $6.98 |
| 1,000+ | $56.75 | $56.75 |
| 1,225+ | $5.01 | $5.01 |
| 5,000+ | $55.62 | $55.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
150 positions.
0.64mm (0.025").
Surface mount.
Gold, 10µin (0.25µm) thickness.
8mm.
Tape and reel, 175 pieces per reel.
Q Strip series, high-speed ground plane connectors.
