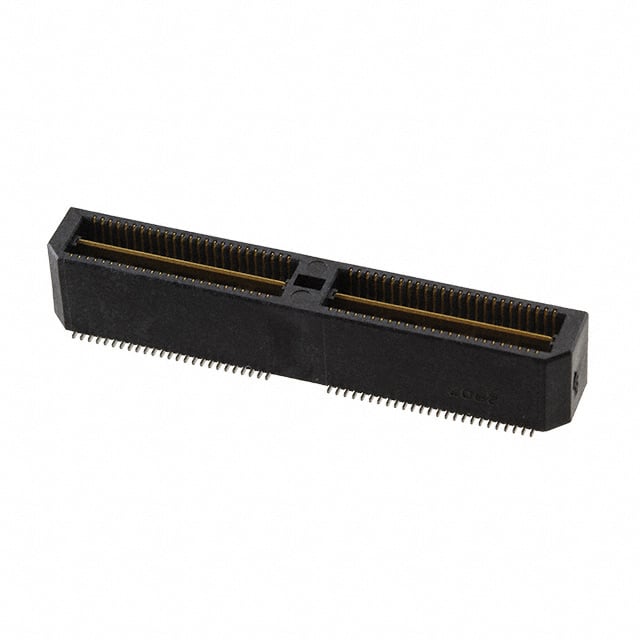

QTS-050-02-F-D-A-TR 100 position, 2 row, 0.635mm pitch surface mount header with gold contacts. Part of the Q Strip high-speed ground plane terminal strip series.
Mfr Part #:

QTS-050-02-F-D-A-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
100 position, 2 row, 0.635mm pitch surface mount header with gold contacts. Part of the Q Strip high-speed ground plane terminal strip series.
✓ Total Stock: 172 pcs
$ Price Range: $7.94

QTS-050-02-F-D-A-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
172 pcs
On Request
172 pcs On Request 1 On Request On Request 07+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

QTS-050-02-F-D-A-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
View Similar Products (0)

QTS-050-02-F-D-A-TR Description

Short technical summary and product information.

The QTS-050-02-F-D-A-TR is a 100-position, 2-row, 0.635mm pitch surface mount header from Samtec's Q Strip series of high-speed ground plane connectors. It features gold contact finish with 3.00µin thickness and includes a board guide and ground bus (plane) for enhanced signal integrity. The mated stacking height is 8mm, with the series supporting stack heights from 5mm to 16mm. This connector is an Extended Life Product (E.L.P.) and is packaged in Tape & Reel with 300 pieces per reel. Designed for high-speed differential pair applications, the Q Strip series offers a channel performance metric of 25 Gbps NRZ, making it suitable for protocols such as PCIe 4.0, USB 10Gbps, and 10/25 Gbps Ethernet.

QTS-050-02-F-D-A-TR Quick Information

Product Type: Board-to-Board Connector
Series: QTS
Canonical Name: QTS-050-02-F-D-A-TR - 0.635mm Q Strip High-Speed Ground Plane Terminal Strip
Subcategory: Mezzanine Connector

QTS-050-02-F-D-A-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

QTS-050-02-F-D-A-TR Estimated Pricing

Qty Low High
300+ $7.94 $7.94

Estimated market price range - modelled values for guidance only, not live distributor offers.

QTS-050-02-F-D-A-TR Features

  • 100 positions with 2 rows and 0.635mm pitch.
  • Surface mount with gold contact finish.
  • Includes board guide and ground bus plane.
  • Extended Life Product for enhanced durability.
  • Tape & Reel packaging, 300 per reel.

QTS-050-02-F-D-A-TR Applications

  • High-speed data transmission in mezzanine connections.
  • Board-to-board stacking with 8mm height.
  • PCIe, USB, and Ethernet protocol applications.
  • Designs requiring ground plane for signal integrity.
  • Compact, high-density connector systems.

QTS-050-02-F-D-A-TR FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the QTS-050-02-F-D-A-TR have?

It has 100 positions.

What is the pitch of this connector?

The pitch is 0.635mm (0.025 inches).

What is the mounting type?

Surface Mount (SMT).

What is the contact finish?

Gold with 3.00µin (0.076µm) thickness.

What is the packaging and quantity?

Tape & Reel packaging with 300 parts per reel.

Does it include a ground bus or board guide?

Yes, it includes a board guide and a ground bus (plane).

Is this an Extended Life Product?

Yes, it is an Extended Life Product (E.L.P.).
