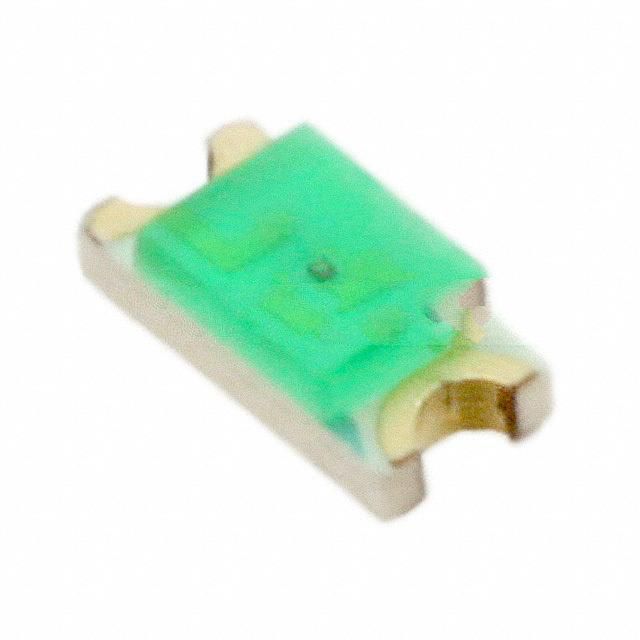

QTLP650D4TR The Everlight Electronics QTLP650D4TR is a green, diffused 1206 SMD LED. It features a 20mA current rating and a 1.9V typical forward voltage.
Mfr Part #:

QTLP650D4TR

Available from 1 distributors
Mfr Name: Everlight Electronics
Everlight Electronics
The Everlight Electronics QTLP650D4TR is a green, diffused 1206 SMD LED. It features a 20mA current rating and a 1.9V typical forward voltage.
✓ Total Stock: 39 pcs
$ Price Range: $0.06

QTLP650D4TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
39 pcs
On Request
39 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

QTLP650D4TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Operating Temperature
Peak Forward Current
Power Dissipation
Reverse Voltage
Storage Temperature
Supplier Device Package
Supplier Package
Tape & Reel
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

QTLP650D4TR Description

Short technical summary and product information.

The Everlight Electronics QTLP650D4TR is a surface mount LED designed for standard 1206 footprints. This green LED offers diffused optics and a low profile, making it suitable for various backlighting applications such as keypads and push-buttons.



Key electrical characteristics include a typical forward voltage of 1.9V and a continuous forward current rating of 20mA. The LED emits light with a dominant wavelength of 570nm and a peak wavelength of 565nm. It provides a minimum luminous intensity of 5mcd and a wide viewing angle of 140°.



The component is housed in a 1206 (3216 Metric) package with dimensions of 3.20mm L x 1.60mm W and a maximum height of 1.30mm. It is supplied on tape and reel, with 2,000 units per reel, suitable for automated assembly processes.



Operating temperature ranges from -40°C to +85°C, with storage temperatures between -40°C to +90°C. The LED is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.

QTLP650D4TR Quick Information

Product Type: LED
Canonical Name: QTLP650D4TR Green Diffused 1206 SMD LED
Subcategory: Discrete LED

QTLP650D4TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

QTLP650D4TR Estimated Pricing

Qty Low High
1+ $0.06 $0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

QTLP650D4TR Features

  • Green diffused 1206 SMD LED.
  • 20mA typical forward current rating.
  • 1.9V typical forward voltage.
  • 140° wide viewing angle.
  • RoHS3 compliant.

QTLP650D4TR Applications

  • Used in electronic indication panels
  • Suitable for display and signaling applications
  • Ideal for surface-mount assembly
  • Applicable in consumer electronics

QTLP650D4TR FAQs

5 frequently asked questions generated from this part’s specifications.
What is the typical forward voltage for the QTLP650D4TR LED?

The typical forward voltage for the QTLP650D4TR LED is 1.9V at 20mA.

What is the viewing angle of the QTLP650D4TR LED?

The QTLP650D4TR LED has a viewing angle of 140°.

What is the luminous intensity of the QTLP650D4TR LED?

The minimum luminous intensity of the QTLP650D4TR LED is 5mcd.

What are the operating and storage temperature ranges for this LED?

The operating temperature range is -40°C to +85°C, and the storage temperature range is -40°C to +90°C.

What package type is the QTLP650D4TR LED supplied in?

The QTLP650D4TR LED is supplied in a 1206 (3216 Metric) surface mount package.
