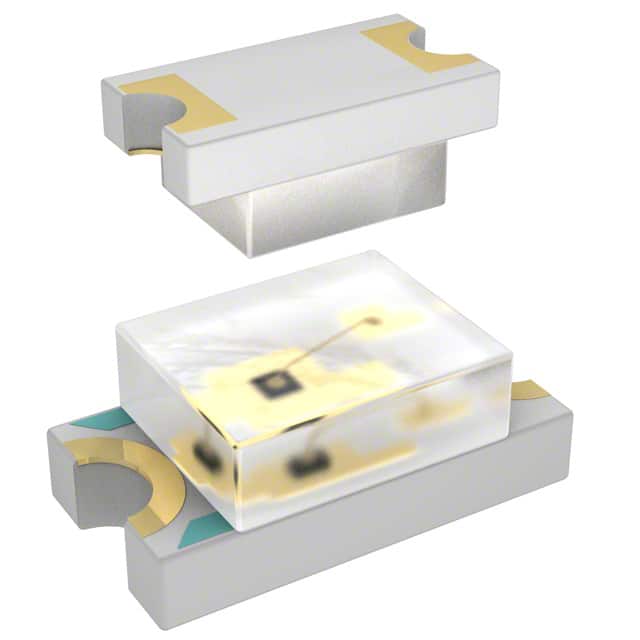

QTLP650D2TR The Everlight Electronics QTLP650D2TR is a red, diffused 1206 SMD LED. It features a small footprint and wide viewing angle, making it suitable for backlighting applications.
Mfr Part #:

QTLP650D2TR

Available from 1 distributors
Mfr Name: Everlight Electronics
Everlight Electronics
The Everlight Electronics QTLP650D2TR is a red, diffused 1206 SMD LED. It features a small footprint and wide viewing angle, making it suitable for backlighting applications.
✓ Total Stock: 1,350 pcs
$ Price Range: $0.06

QTLP650D2TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,350 pcs
On Request
1350 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

QTLP650D2TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Footprint
Height (Max)
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Operating Temperature
Peak Forward Current
Power Dissipation
Reverse Voltage
Storage Temperature
Supplier Device Package
Tape & Reel
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

QTLP650D2TR Description

Short technical summary and product information.

The Everlight Electronics QTLP650D2TR is a surface mount chip LED designed for standard footprint compatibility. This 1206 package LED offers a red diffused light output with a peak wavelength of 635nm.



Key electrical characteristics include a typical forward voltage of 2.4V at 20mA, a maximum continuous forward current of 30mA, and a peak forward current of 180mA at 1kHz. The luminous intensity is rated at a minimum of 8mcd at 20mA, with a wide viewing angle of 140°.



With its small footprint measuring 3.2mm x 1.6mm x 1.1mm, the QTLP650D2TR is ideal for applications requiring compact illumination. It is supplied on tape and reel, with 2,000 units per reel, facilitating automated assembly processes.



This LED is suitable for applications such as keypad backlighting, push-button backlighting, and LCD backlighting, where a low profile and wide viewing angle are beneficial.

QTLP650D2TR Quick Information

Product Type: LED
Series: QTLP650D
Canonical Name: QTLP650D2TR Surface Mount LED
Subcategory: Discrete LED

QTLP650D2TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

QTLP650D2TR Estimated Pricing

Qty Low High
1+ $0.06 $0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

QTLP650D2TR Features

  • Red diffused 1206 SMD LED.
  • Small footprint: 3.2mm x 1.6mm.
  • Wide 140° viewing angle.
  • 635nm peak wavelength.
  • Suitable for backlighting applications.

QTLP650D2TR Applications

  • Ideal for keypad backlighting.
  • Used for push-button illumination.
  • Suitable for LCD backlighting.
  • Panel illumination applications.

QTLP650D2TR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the forward voltage for the QTLP650D2TR LED?

The maximum forward voltage for the QTLP650D2TR LED at 20mA is 2.4V.

What is the peak wavelength of the QTLP650D2TR LED?

The peak wavelength of the QTLP650D2TR LED is 635nm.

What is the luminous intensity of the QTLP650D2TR LED?

The minimum luminous intensity of the QTLP650D2TR LED at 20mA is 8mcd.

What is the viewing angle of the QTLP650D2TR LED?

The viewing angle of the QTLP650D2TR LED is 140°.

What are the dimensions of the QTLP650D2TR LED package?

The QTLP650D2TR LED has a small footprint of 3.2mm in length, 1.6mm in width, and 1.1mm in height.

What is the operating temperature range for the QTLP650D2TR LED?

The operating temperature range for the QTLP650D2TR LED is -40°C to +85°C.
