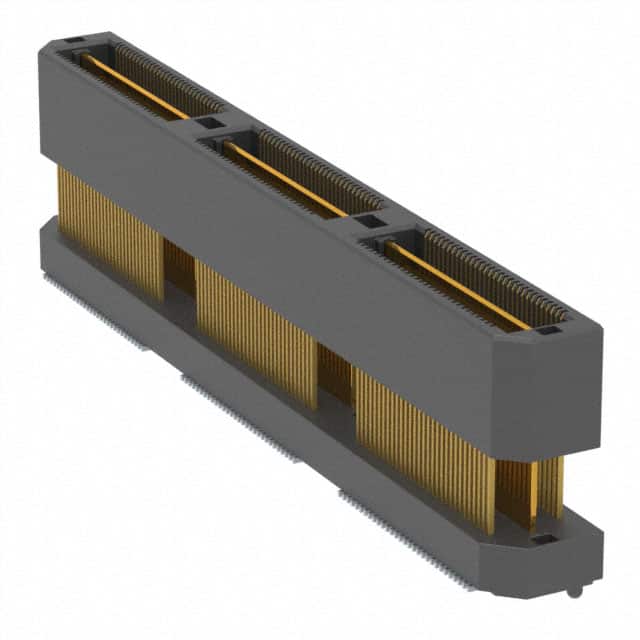

QTH-090-04-L-D-A-TR The QTH-090-04-L-D-A-TR is a 180-position, 0.5mm pitch header connector with outer shroud contacts, featuring gold contact finish and surface mount mounting. It includes board guide and ground bus features and is supplied in tape and reel packaging.
Mfr Part #:

QTH-090-04-L-D-A-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The QTH-090-04-L-D-A-TR is a 180-position, 0.5mm pitch header connector with outer shroud contacts, featuring gold contact finish and surface mount mounting. It includes board guide and ground bus features and is supplied in tape and reel packaging.
✓ Total Stock: 57 pcs
$ Price Range: $20.61

QTH-090-04-L-D-A-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
57 pcs
On Request
57 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

QTH-090-04-L-D-A-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Halogen Free
Height Above Board
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Packaging Type
Pitch
Standard Package Quantity
Tape & Reel
View Similar Products (0)

QTH-090-04-L-D-A-TR Description

Short technical summary and product information.

The QTH-090-04-L-D-A-TR is a high-speed ground plane SMT header connector from Samtec's QTH series. It features 180 positions arranged in 2 rows at a 0.5mm pitch, making it suitable for dense board-to-board mezzanine applications. The connector uses outer shroud contacts with a gold finish (10µin) for reliable signal integrity.



The connector is designed for surface mount soldering and has a height above board of 15.24mm, with a mated stacking height of 16mm. It includes board guide and ground bus (plane) features to assist alignment and provide grounding. The contact finish thickness is 10µin (0.25µm) over the gold.



This connector is part of Samtec's Q Pairs® differential pair mezzanine connector family, supporting high-speed protocols up to 14 Gbps NRZ. It is supplied in tape and reel packaging with 100 parts per reel. The part is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited).



The QTH-090-04-L-D-A-TR is ideal for applications requiring high pin count and high-speed signal transmission in a compact footprint. Its robust design includes a ground plane for improved electrical performance.

QTH-090-04-L-D-A-TR Quick Information

Product Type: Mezzanine Connector (Board-to-Board)
Series: QTH-DP-RA
Canonical Name: 180 Position 0.5mm Pitch Header, Outer Shroud Contacts, Surface Mount
Subcategory: Mezzanine Connector

QTH-090-04-L-D-A-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

QTH-090-04-L-D-A-TR Estimated Pricing

Qty Low High
100+ $20.61 $20.61

Estimated market price range - modelled values for guidance only, not live distributor offers.

QTH-090-04-L-D-A-TR Features

  • 180 positions on 0.5mm pitch.
  • Gold contact finish with 10µin thickness.
  • Surface mount with 16mm stacking height.
  • Includes board guide and ground bus.
  • Supplied in tape and reel packaging.

QTH-090-04-L-D-A-TR Applications

  • Ideal for high-density mezzanine board-to-board connections.
  • Supports high-speed differential pair signaling.
  • Suitable for networking and telecommunications equipment.
  • Used in data center interconnects requiring high pin count.
  • Applicable in test and measurement systems.

QTH-090-04-L-D-A-TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the QTH-090-04-L-D-A-TR connector?

0.50mm (0.020").

How many positions does this connector have?

180 positions.

What is the mounting type of this connector?

Surface mount.

What is the contact finish on the QTH-090-04-L-D-A-TR?

Gold with 10µin (0.25µm) thickness.

What is the mated stacking height for this connector?

16mm.

What packaging is available for the QTH-090-04-L-D-A-TR?

Tape and reel, 100 parts per reel.

Is the QTH-090-04-L-D-A-TR RoHS compliant?

RoHS3 compliant (unverified).
