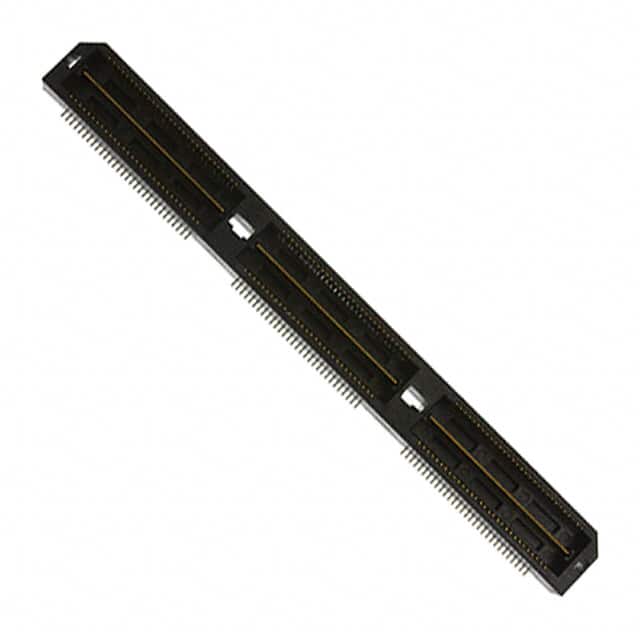

QTH-090-01-L-D-A Samtec QTH-090-01-L-D-A is a 180 position, 2 row, 0.50mm pitch surface mount header connector with gold contacts and a 5mm mated stacking height.
Mfr Part #:

QTH-090-01-L-D-A

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec QTH-090-01-L-D-A is a 180 position, 2 row, 0.50mm pitch surface mount header connector with gold contacts and a 5mm mated stacking height.
✓ Total Stock: 21 pcs
$ Price Range: $8.27 - $20.02

QTH-090-01-L-D-A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
21 pcs
On Request
21 pcs On Request 1 On Request On Request 1725 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

QTH-090-01-L-D-A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Data Rate
Features
Halogen Free
Height Above Board
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
View Similar Products (0)

QTH-090-01-L-D-A Description

Short technical summary and product information.

The Samtec QTH-090-01-L-D-A is a 180-position, 2-row, 0.50mm pitch surface mount header connector from the Q Strip series of high-speed ground plane connectors. It features an integrated ground plane for power or ground routing and is designed for mezzanine board-to-board applications with a mated stacking height of 5mm.



The connector is rated for 25 Gbps performance and is an Extended Life Product (E.L.P.). It includes board guide and ground bus (plane) features. The contacts are finished with 0.25µm gold over the mating area. The component is supplied in trays with a standard package quantity of 42 pieces.

QTH-090-01-L-D-A Quick Information

Product Type: Header Connector
Series: QTH
Canonical Name: 0.50mm High-Speed Ground Plane SMT Header Connector, 180 Pin, 2 Row, Gold, 5mm Stack Height
Subcategory: Mezzanine Connector

QTH-090-01-L-D-A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

QTH-090-01-L-D-A Estimated Pricing

Qty Low High
1+ $20.02 $20.02
42+ $15.40 $15.40
84+ $15.02 $15.02
126+ $11.64 $11.64
210+ $10.52 $10.52
462+ $8.27 $8.27

Estimated market price range - modelled values for guidance only, not live distributor offers.

QTH-090-01-L-D-A Features

  • 180 positions in 2 rows.
  • 0.50mm pitch for high density.
  • 25 Gbps high-speed performance.
  • Integrated ground plane for power/ground.
  • Extended Life Product (E.L.P.) design.

QTH-090-01-L-D-A Applications

  • High-speed mezzanine board-to-board connections.
  • Data center and networking equipment.
  • Telecommunications and server infrastructure.
  • Test and measurement systems.
  • Industrial computing and control.

QTH-090-01-L-D-A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the QTH-090-01-L-D-A connector?

The pitch is 0.50mm.

How many positions does the QTH-090-01-L-D-A have?

It has 180 positions arranged in 2 rows.

What is the mounting type for this connector?

Surface mount (SMT).

What is the mated stacking height of the QTH-090-01-L-D-A?

The mated stacking height is 5mm.

What is the contact finish on this connector?

Gold with a thickness of 0.25µm.

What data rate is the QTH-090-01-L-D-A rated for?

It is rated for 25 Gbps performance.

Is the QTH-090-01-L-D-A RoHS compliant?

It is listed as RoHS3 Compliant, but this status is unverified.
