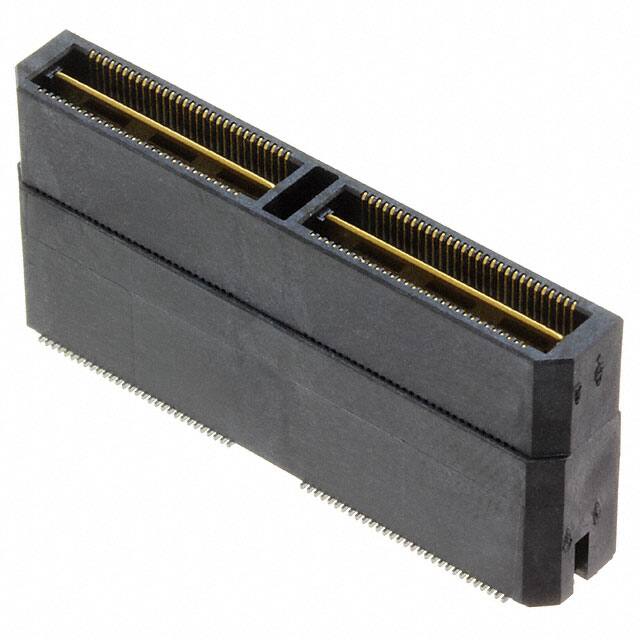

QTH-060-05-L-D-A The Samtec QTH-060-05-L-D-A is a 120-position, 2-row, 0.50mm pitch high-speed ground plane SMT header connector. It features 10µin gold contact finish, 19mm mated stacking height, and is rated for 2A per pin and 175 VAC.
Mfr Part #:

QTH-060-05-L-D-A

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec QTH-060-05-L-D-A is a 120-position, 2-row, 0.50mm pitch high-speed ground plane SMT header connector. It features 10µin gold contact finish, 19mm mated stacking height, and is rated for 2A per pin and 175 VAC.
✓ Total Stock: 15 pcs
$ Price Range: $9.61 - $17.12

QTH-060-05-L-D-A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

QTH-060-05-L-D-A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Features
Halogen Free
Height Above Board
Insulator Material
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
Pitch
Tape & Reel
Voltage Rating
View Similar Products (0)

QTH-060-05-L-D-A Description

Short technical summary and product information.

The Samtec QTH-060-05-L-D-A is a high-speed mezzanine header connector from the QTH series. It has 120 positions arranged in 2 rows with a 0.50mm pitch. This connector is designed for board-to-board stacking applications with a mated height of 19mm.



Each contact is rated for 2A (2 pins powered) and the integrated ground plane can carry 25A. The voltage rating is 175 VAC at 5mm stack height. Operating temperature range is -55°C to +125°C. The insulator is liquid crystal polymer and contacts are phosphor bronze with 10µin gold plating.



Design features include board guide and ground bus plane for improved signal integrity and mechanical alignment. The connector is surface mount with SMT lead coplanarity of 0.10mm max. It is lead-free solderable and supports up to 100 mating cycles.



Packaging is in trays with 36 parts per package. The connector is RoHS3 compliant and REACH unaffected (unverified). It is suitable for high-speed differential pair applications.

QTH-060-05-L-D-A Quick Information

Product Type: High-Speed Mezzanine Header Connector
Series: QTH
Canonical Name: Samtec QTH-060-05-L-D-A .5mm High-Speed Ground Plane SMT Header Connector, 120 Position, 2 Row, 10µin Gold/Tin, 19mm Stack Height
Subcategory: Mezzanine Connectors

QTH-060-05-L-D-A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

QTH-060-05-L-D-A Estimated Pricing

Qty Low High
1+ $17.12 $17.12
10+ $16.61 $16.61
25+ $16.19 $16.19
50+ $15.41 $15.41
100+ $13.14 $13.14
250+ $11.19 $11.19
500+ $9.61 $9.61

Estimated market price range - modelled values for guidance only, not live distributor offers.

QTH-060-05-L-D-A Features

  • 120 positions in 2 rows at 0.50mm pitch.
  • 10µin gold contact finish for reliability.
  • Integrated ground plane supports 25A current.
  • Rated for 175 VAC and 2A per pin.
  • Surface mount with 19mm stacking height.

QTH-060-05-L-D-A Applications

  • Ideal for high-speed mezzanine board stacking.
  • Supports differential pair signal routing.
  • Used in data center and telecom equipment.
  • Suitable for PCIe, Ethernet, and SAS protocols.

QTH-060-05-L-D-A FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the QTH-060-05-L-D-A have?

120 positions in 2 rows.

What is the pitch of the QTH-060-05-L-D-A?

0.50mm (0.020").

What is the current rating of the QTH-060-05-L-D-A?

2A per pin (2 pins powered) and 25A per ground plane (1 ground plane powered).

What is the voltage rating of the QTH-060-05-L-D-A?

175 VAC at 5mm stack height.

What is the mounting type of the QTH-060-05-L-D-A?

Surface mount.

What is the operating temperature range?

-55°C to +125°C.

What is the mated stacking height?

19mm.
