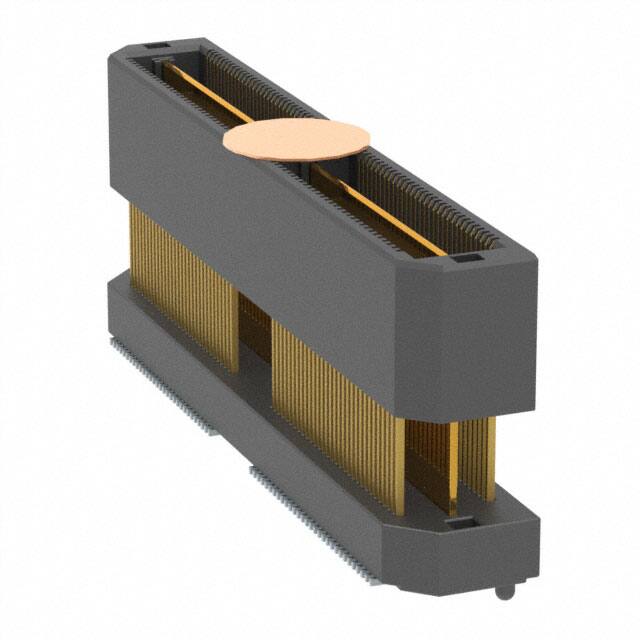

QTH-060-04-L-D-A-K-TR 0.50mm pitch high-speed ground plane SMT header connector with 120 positions, 2 rows, gold contacts, and 16mm mated stacking height.
Mfr Part #:

QTH-060-04-L-D-A-K-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
0.50mm pitch high-speed ground plane SMT header connector with 120 positions, 2 rows, gold contacts, and 16mm mated stacking height.
✓ Total Stock: 56 pcs
$ Price Range: $12.28 - $20.05

QTH-060-04-L-D-A-K-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
56 pcs
On Request
56 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

QTH-060-04-L-D-A-K-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Halogen Free
Height Above Board
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
View Similar Products (0)

QTH-060-04-L-D-A-K-TR Description

Short technical summary and product information.

The QTH-060-04-L-D-A-K-TR is a high-speed ground plane SMT header connector from Samtec's Q Pair family. It features 120 positions arranged in 2 rows on a 0.50mm pitch, providing a compact solution for mezzanine board-to-board applications.



This connector offers a 16mm mated stacking height and includes a board guide, ground bus (plane), and pick-and-place features for automated assembly. The contacts are finished with 10.0µin (0.25µm) gold over the contact area, ensuring reliable signal integrity.



Designed for surface mount soldering, the part is supplied on tape and reel packaging (100 pieces per reel). It is RoHS3 compliant and has an MSL of 1 (unlimited) for moisture sensitivity.



The connector supports high-speed differential pair signaling and is suitable for applications requiring dense, high-performance board-to-board interconnects.

QTH-060-04-L-D-A-K-TR Quick Information

Product Type: High-Speed Ground Plane SMT Header Connector
Series: QTH
Canonical Name: 0.50mm High-Speed Ground Plane SMT Header Connector, 120 Positions, 2 Rows, 16mm Stacking Height
Subcategory: Mezzanine (Board to Board) Connector

QTH-060-04-L-D-A-K-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

QTH-060-04-L-D-A-K-TR Estimated Pricing

Qty Low High
1+ $20.05 $20.05
10+ $17.04 $17.04
100+ $12.87 $12.87
300+ $12.28 $12.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

QTH-060-04-L-D-A-K-TR Features

  • 120 positions on 0.50mm pitch.
  • Surface mount with board guide.
  • Gold contact finish, 10.0µin thickness.
  • 16mm mated stacking height.
  • Includes ground bus plane.

QTH-060-04-L-D-A-K-TR Applications

  • High-speed mezzanine board-to-board connections.
  • Suitable for differential pair signaling.
  • Used in data communication and telecom equipment.
  • Ideal for dense PCB stacking.

QTH-060-04-L-D-A-K-TR FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does this connector have?

120 positions.

What is the pitch of this connector?

0.50mm (0.020").

What is the mounting type?

Surface mount (SMT).

What is the mated stacking height?

16mm.

What is the contact finish?

Gold, 10.0µin (0.25µm) thickness.

What packaging is available?

Tape and reel, standard package quantity of 100.
